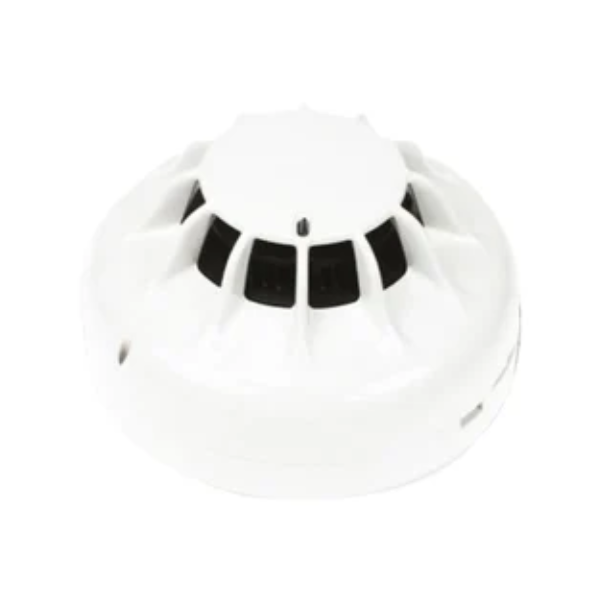

MX Photo/Heat Sensor – Simplex 4098-5255

The 4098-5255 MX Photo/Heat Sensor is a versatile multi-sensor device in the MX series, designed to detect both smoke and heat simultaneously. It uses a photoelectric element to sense smoke—particularly from smoldering fires—and a heat sensor to track rising temperatures, providing reliable response to a wide range of fire conditions, from slow smoldering to fast-flaming.

Key Features

• Dual smoke and heat detection – Combines photoelectric and heat sensing to improve sensitivity and handle diverse fire scenarios.

• MX Fastlogic Algorithm – Intelligent signal processing that analyzes smoke level, rate of rise, and real fire test data, improving accuracy, reducing false alarms, while maintaining fast response to real fires.

• Soft Addressing – Supports easy, error-free address assignment using tools such as the 801AP programmer or the Digital Enrollment App with QR code scanning.

• Fully MX Addressable – Operates on the MX loop and communicates its status directly to the control panel via the MX Loop Module.

• Self-test and supervision – Includes built-in monitoring, supports remote indicator LEDs, and offers enhanced diagnostic features.

Technical Specifications (based on Simplex/MX documentation)

• Sensor Type: Combined Photoelectric + Heat detection

• Smoke Sensitivity (UL-Listed): ~2.32 ± 1.51 %/ft

• Current Requirements:

  • Supervisory: approx. 350 µA

  • Alarm: up to 4.0 mA

• Operating Temperature Range: –25 °C to +70 °C (–13 °F to 158 °F)

• Heat Detection Configuration: Programmable at the control panel for fixed temperature 57 °C (135 °F) or 93 °C (200 °F), with or without rate-of-rise detection

• Line Protection: While the 4098-5255 model does not include an isolator, the equivalent 4098-5265 version incorporates isolator functionality for short-circuit protection.

• Functions and Control: Supports self-test, status supervision, remote LED indication, and full integration with MX addressable control systems.
