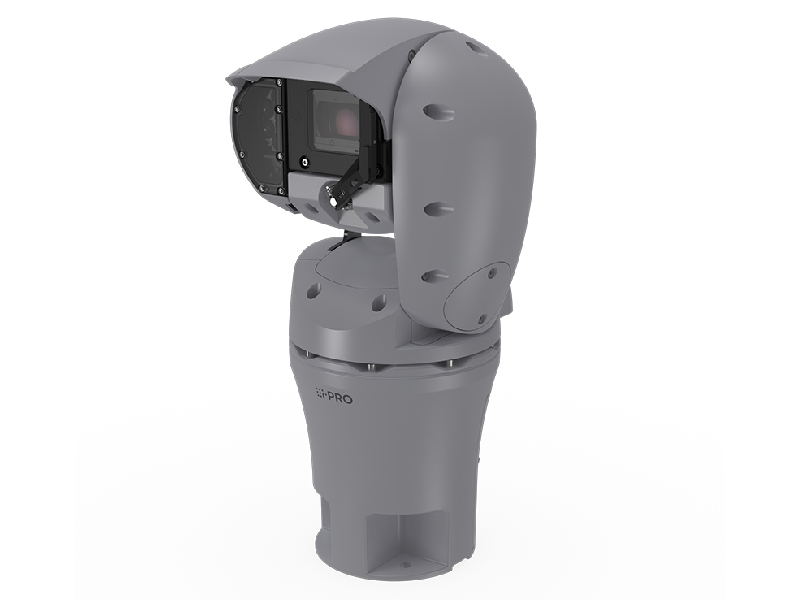

WV-X67710-Z3-3

Description of WV-X67710-Z3-3 Camera

The WV-X67710-Z3-3 is an IP PTZ camera from i-PRO, featuring a 1/2.8-inch CMOS image sensor. This camera supports 4K (Ultra-HD) resolution, delivering highly sharp and detailed images even when zoomed in. Its 30x optical zoom ensures image quality remains uncompromised, providing clear observation of distant objects.

In combination with digital zoom capabilities, the camera can achieve up to 480x magnification, allowing for detailed monitoring of distant subjects.

The camera supports running up to three AI Edge video analytics applications simultaneously, enabling complex functions such as object detection, people counting, behavior analysis, and more, all processed directly on the device without the need for a central server.

The camera offers intelligent analytics features, including facial recognition, motion detection, and auto-tracking of people and vehicles, even in low-light or nighttime conditions. Its wide operating temperature range from -30°C to +65°C ensures reliable performance in harsh environments such as freezing cold regions or high-temperature areas.

Technical Specifications

• Image Sensor: 1/2.8-inch CMOS
• Resolution: 4K
• Protocols: IPv6, IPv4
• Network Interface: 10Base-T / 100Base-TX, RJ45
• Frame Rate: Up to 30 fps
• Minimum Illumination:
  • Color: 0.13 lx; 0.19 lx
  • Black & White: 0.10 lx; 0 lx
• WDR: Up to 132dB
• Focal Length: 4.5 - 135 mm
• Optical Zoom: 30x
• Digital Zoom: 30x - 480x
• Memory Card Support: SDXC/SDHC/SD
• Standards:
  • IP68/IP66 (IEC 60529)
  • Type 4X (UL50E), Type 6P (UL50E)
  • Compliant with NEMA 4X and NEMA 6P
• Operating Temperature: -30°C to +65°C
• Humidity: 10% to 100%
• AI Analytics: Supported
• Power Supply:
  • 24V AC 50Hz/60Hz
  • 24V DC
  • 90W PoE++
  • 60W PoE++
