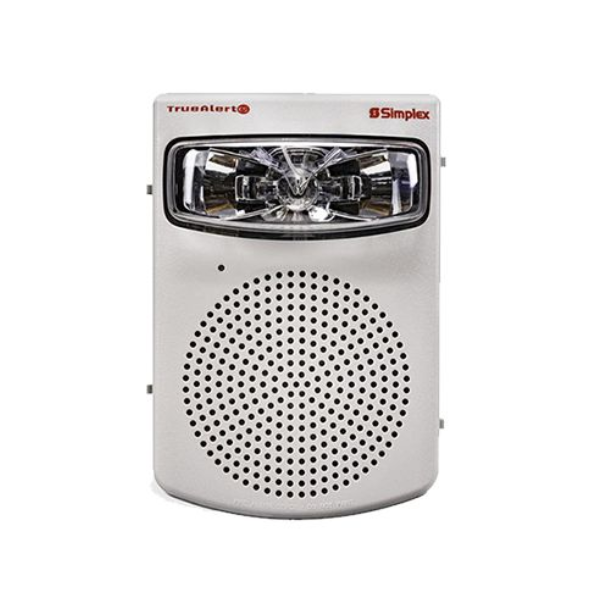

Wall Mount Addressable S/V Appliances

Wall Mount Addressable S/V Appliances

These appliances are powered, individually addressed, and controlled through the Simplex® FACU IDNAC SLC, with speakers operating on a separate NAC audio circuit. They support Class B T-tap wiring for reduced cost and wiring distance, and mount to a standard 4 × 4 in., 2-1/8 in. deep electrical box or surface/weatherproof back box. Models are available with 400–4000 Hz (Standard) or 200–10,000 Hz (High Fidelity) frequency ranges, with –BA versions assembled in the USA.

General Features

• Modular design: separate device, cover, back box, and wire guard → flexible installation.

• Flame-retardant plastic housing with easily removable covers.

• Supports 18–12 AWG wiring.

• Supervision LED with magnet test capability.

• ADA and NFPA 72 compliant (including 520 Hz for sleeping areas).

• Strobe candela selectable via FACU software or manual setting.

• Speaker taps: ¼ W, ½ W, 1 W, 2 W @ 25/70.7 Vrms.

• Listings/Approvals: UL 1480, ULC S541, FM.

Product Selection

Standard S/V (NEMA 1):

• 49SV-APPLW

• 49SV-APPLW-BA

High Fidelity (NEMA 1):

• 49HFV-APPLW

• 49HFV-APPLW-BA

Covers (mandatory when ordering APPLW):

• Multiple color options (Red/White) and labels: FIRE, ALERT, FEU, FUEGO, Simplex logo, etc.

Lens (indoor only):

• Amber, Blue, Green, Red (P/N: 49LENS-XXXX).

Weatherproof Models (NEMA 3R):

• 49SV-APPLW-O

• 49SV-APPLW-O-BA

• 49SV-APPLW-CO (Canada only)

Weatherproof Covers: FIRE, ALERT, FEU, bilingual (Arabic/Chinese).

WP Back Boxes (NEMA 3R):

• 49WPBB-SVWR (Red)

• 49WPBB-SVWW (White)

Wire Guards: wall/ceiling, red, weatherproof.

Wall Mount Back Plate: 49MP-SVWR (Red), 49MP-SVWW (White).

Technical Specifications

Dimensions (Indoor & Outdoor):
7 3/8" × 5" × 1 3/4" (187 × 128 × 42 mm)

Environmental (Indoor, NEMA 1):
0°C to 49°C, RH 10–93%

Environmental (Outdoor, NEMA 3R):

• UL/ULC: –40°C to 66°C (outdoor private)

• FM: –40°C to 49°C

• RH 95% @ 60°C

Audio:

• 25 / 70.7 Vrms, taps: 0.25 / 0.5 / 1 / 2 W

• Response: 400–4000 Hz (Standard), 200–10,000 Hz (High Fidelity)

Sound Output (10 ft / 3 m):

• ¼ W: 79–81 dBA

• ½ W: 83–84 dBA

• 1 W: 86–88 dBA

• 2 W: 89–90 dBA

Strobe Candela Output (Indoor): 15, 30, 75, 110, 135, 185 cd
Strobe Candela Output (Outdoor private mode):

• WP15 → 69 cd

• WP75 → 240 cd

• WP110 → 300 cd

• WP185 → 445 cd

Current Consumption @ 23V:

• 15 cd: 47 mA

• 75 cd: 100 mA

• 110 cd: 132 mA

• 185 cd: 208 mA (indoor) / 445 mA (outdoor WP)

IDNAC SLC:

• 23–30 VDC regulated

• Max 127 addresses / 139 unit loads

• Class B T-tap, up to 10,000 ft

• Point-to-point: up to 4000 ft (8000 ft with 4009 Repeater)

Compatibility

• 4100ES with EPS+/EPS Power Supply (S4100-0100)

• 4009 IDNAC Repeater (S4009-0004)

• 4100ES Amplifiers 35/50/100 W

• 4100ES Constant Supervision & Audio NACs
