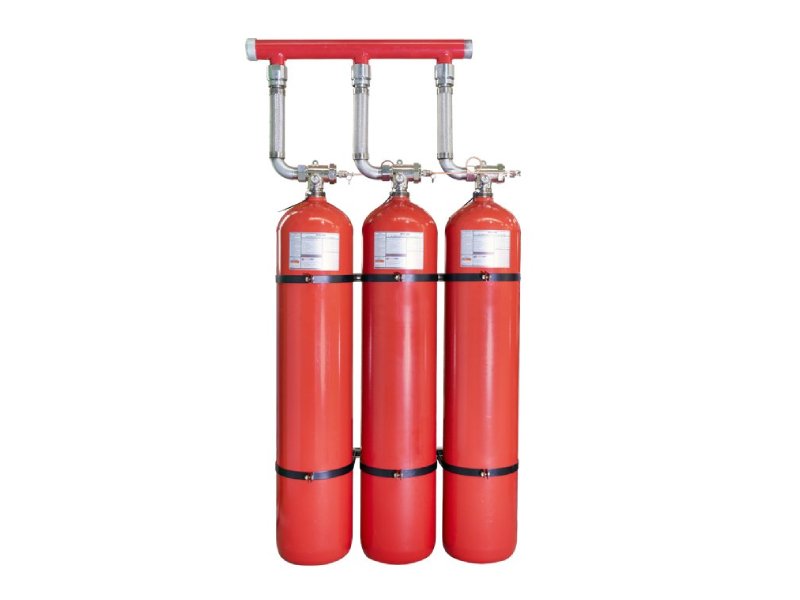

FM200 Fire Extinguisher SFS-C140 140L/42 bar

The SFS-C140 cylinder is a specialized fire extinguisher designed to quickly and effectively extinguish fires. The cylinder is made from forged steel with a capacity of 140L, used in the SFS-200 fire suppression system. It contains FM-200 / HFC-227ea fire extinguishing gas, pressurized with nitrogen to a pressure of 50 bar / 42 bar at 21°C. The cylinder is equipped with a valve at the top, a pressure gauge, and optionally, a pressure gauge with an integrated monitoring contact. The valve also includes a safety pressure relief valve, making it suitable for protecting areas with high safety requirements such as:

Data centers
Transformer rooms, electrical rooms, generator rooms
Telecommunications equipment
Document storage rooms
Cable ducts
Flammable liquid storage areas
Spray booths
Healthcare facilities
High-value industrial equipment
Server rooms
Libraries, museums, etc.
Explosive material storage areas

Each fire extinguisher comes with a standard pressure gauge, and as per design requirements, a pressure gauge with a monitoring contact can be chosen. This allows remote monitoring of the cylinder's pressure via the fire alarm system, providing accurate information on the system's operational status.

The system operates automatically when it receives a control signal from the fire alarm system. The solenoid valve opens, activating the discharge of 1L, 0.65kg of CO2 from the booster cylinder. The pressure increases, opening the zone selection valve (if present), and activates the FM-200 cylinders to discharge the fire extinguishing gas through the piping system and nozzles.

Technical Specifications

Item Code	SFS-C220	SFS-C180	SFS-C140	SFS-C82.5	SFS-C40
Charge Range (kg)	88kg - 231kg (194 - 509 lbs)	72kg - 180kg (159 - 417 lbs)	56kg - 147kg (123 - 324 lbs)	33kg - 86kg (73 - 190 lbs)	16kg - 42kg (35 - 93 lbs)
Height (mm)	2090mm	1750mm	1405mm	1850mm	985mm
Diameter (mm)	406 ±1%	406 ±1%	267 ±1%	267 ±1%	267 ±1%
Volume (L)	220L	180L	140L	82.5L	40L
Charging Pressure (bar)	42 / 50 bar	42 / 50 bar	42 / 50 bar	42 / 50 bar	42 / 50 bar
Empty Weight (kg)	175kg ±5%	170kg ±5%	144kg ±5%	92kg ±5%	53kg ±5%
Cylinder Material	Steel 34CrMo4	Steel 34CrMo4	Steel 34CrMo4	Steel 34CrMo4	Steel 34CrMo4
Paint Color	Red RAL3000	Red RAL3000	Red RAL3000	Red RAL3000	Red RAL3000
Max Pressure (bar)	200	200	200	200	200
Test Pressure (bar)	300	300	300	300	300
Min Pressure (bar)	480	480	480	480	480
Technical Standards	ISO 9809-1, TPED, PI	ISO 9809-1, TPED, PI	ISO 9809-1, TPED, PI	ISO 9809-1, TPED, PI	ISO 9809-1, TPED, PI
Valve Material	Nickel-plated Brass	Nickel-plated Brass	Nickel-plated Brass	Nickel-plated Brass	Nickel-plated Brass
Operating Temperature (°C)	0 to 54	0 to 54	0 to 54	0 to 54	0 to 54
