Camera IP Dome WV-U22301-F3L 2MP Indoor Vandal IR

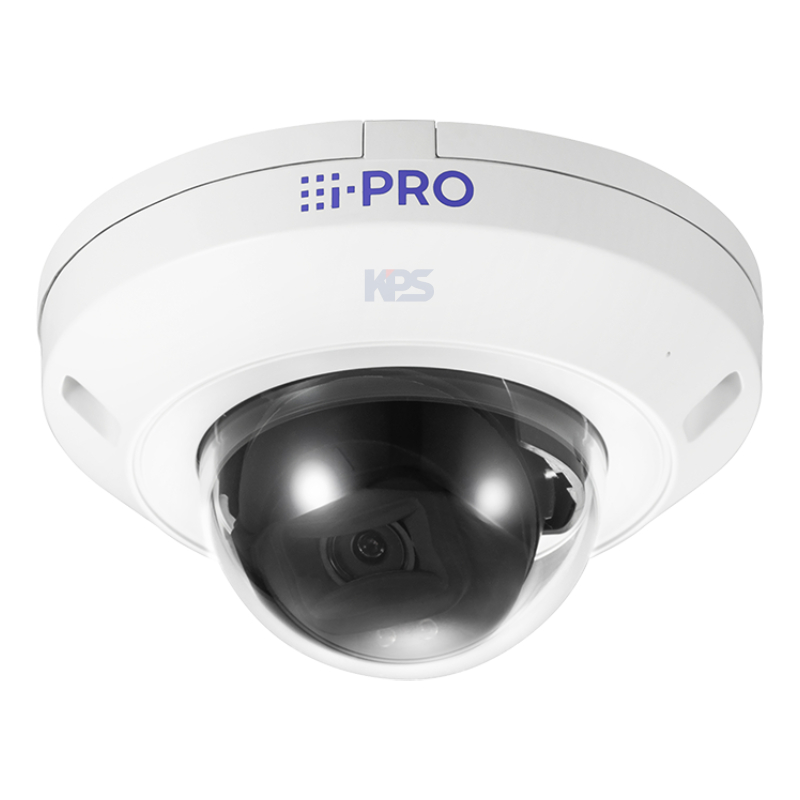

i-PRO WV-U22301-F3L Dome Camera

The i-PRO WV-U22301-F3L is a 2MP indoor IP dome camera with vandal-proof (IK10) design, suitable for high-security areas such as building lobbies, hallways, elevators, offices, banks, shopping malls, and critical infrastructure.

The camera is equipped with long-range IR (infrared) illumination up to 42m, providing clear viewing in low light or at night. Super Dynamic WDR (Wide Dynamic Range) 120 dB technology effectively balances light in high-contrast environments, ensuring clear and detailed images in both bright and dark areas.

The device supports i-VMD motion detection and includes an integrated microphone for direct audio recording, enhancing monitoring and event analysis capabilities. Supports H.265/H.264 compression standards, supports multiple simultaneous video streams, optimizing bandwidth and storage capacity.

The camera is FIPS 140-3 Level 3 certified, NDAA compliant, and meets stringent information security requirements in enterprise and government projects. Powered via PoE (IEEE 802.3af), the camera simplifies installation and easily integrates with existing systems.

Technical Specifications

• Resolution: 2MP (1920 × 1080)
• Image Sensor: 1/2.8" CMOS
• Minimum Illumination: 0.07 lx (color), 0 lx (black and white with IR on)
• Infrared: IR LED, range up to 42 m
• Audio Recording with Built-in Microphone
• i-VMD Motion Detection
• Super Dynamic WDR up to 120 dB
• Digital Noise Reduction (DNR)
• Maximum Digital Zoom: 3.0x
• Viewing Angle: 105° Horizontal, 57° Vertical
• Video Compression Standard: H.265 / H.264
• Supports up to 4 video streams
• ONVIF Profile: G / S / T
• Supports microSDXC memory cards up to 512 GB
• Security: FIPS 140-3 Level 3 (Secure Element)
• NDAA Compliant
• Power Supply: PoE (IEEE 802.3af), power consumption ~9.6 W
• Supports up to 14 simultaneous users
• IP42 dust and water resistance rating (indoor)
• IK10 impact resistance rating
• Operating temperature –10 °C to +50 °C
• Dimensions Ø109 × 62 mm
• Weight ~270 g.

Technical Specifications Document
