Camera IP Box i-PRO WV-U11301-F3 2MP Indoor FIPS 140-3

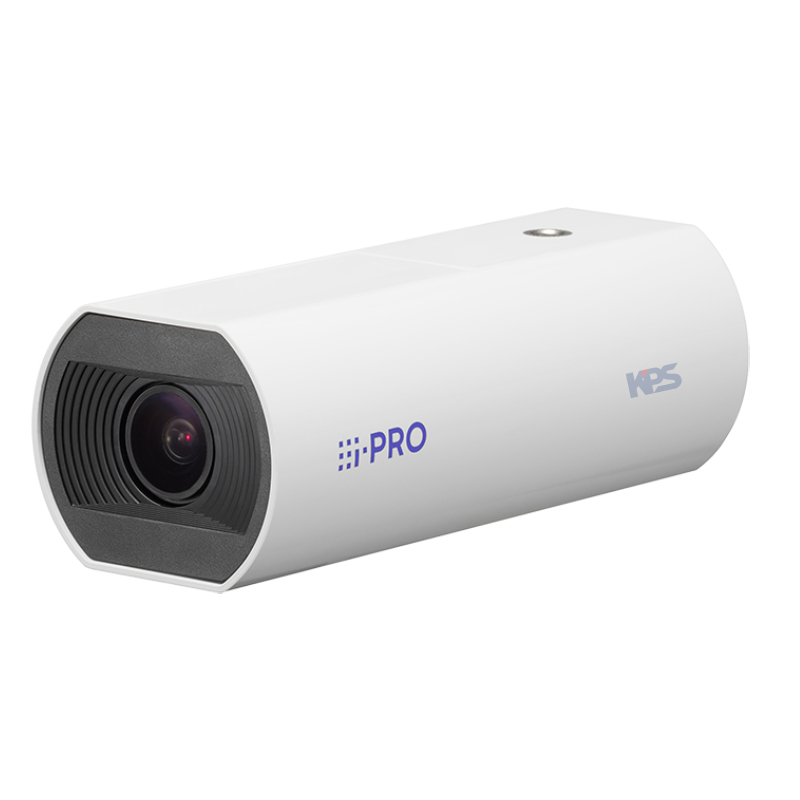

i-PRO WV-U11301-F3 Camera

The i-PRO WV-U11301-F3 is an indoor box-type IP camera with Full HD 2MP resolution, designed for professional surveillance systems requiring high stability and enterprise-level security. It integrates i-VMD (video motion detection), a built-in microphone, and superior image processing capabilities with Super Dynamic 120 dB, ensuring clear images even in challenging lighting conditions.

A key feature of the WV-U11301-F3 is its SecureElement, certified FIPS 140-3 Level 3 (NXP EdgeLock® SE052F), combining advanced security mechanisms such as secure boot, signed firmware, HTTPS, IEEE 802.1X, and meeting NDAA standards. This camera is suitable for deployment in offices, banks, data centers, retail stores, commercial buildings, and projects requiring high cybersecurity.

Key Features:

• 2MP Full HD resolution, clear images.
• 1/2.8-inch CMOS sensor, high light sensitivity.
• Super Dynamic technology, dynamic range up to 120 dB.
• Standard i-VMD video motion detection.
• Live audio recording with built-in microphone.
• Supports multiple video streams H.265/H.264/MJPEG.
• FIPS 140-3 Level 3 hardware security.
• Compliant with NDAA and ONVIF Profile G/S/T standards.
• PoE IEEE 802.3af power supply, flexible installation.

Technical Specifications

• Maximum resolution 1920 × 1080 (30fps / 25fps).
• Fixed focal length lens 3.2 mm.
• Horizontal viewing angle 108° (16:9), vertical 58°.
• Minimum illumination 0.07 lux (color).
• Maximum digital zoom 3.0x.
• Video compression standard H.265 / H.264, up to 4 streams.
• Audio recording with built-in microphone, supports AAC / G.711 / G.726.
• Supports microSD memory cards up to 512 GB.
• Network protocols IPv4 / IPv6, HTTPS, SNMP, MQTT.
• Security FIPS 140-3 Level 3, secure boot, signed firmware.
• Power supply IEEE 802.3af, power consumption approximately 6.7 W.
• Operating temperature from -10°C to +50°C.
• Dimensions 59 × 49 × 142 mm, weight approximately 250 g.
