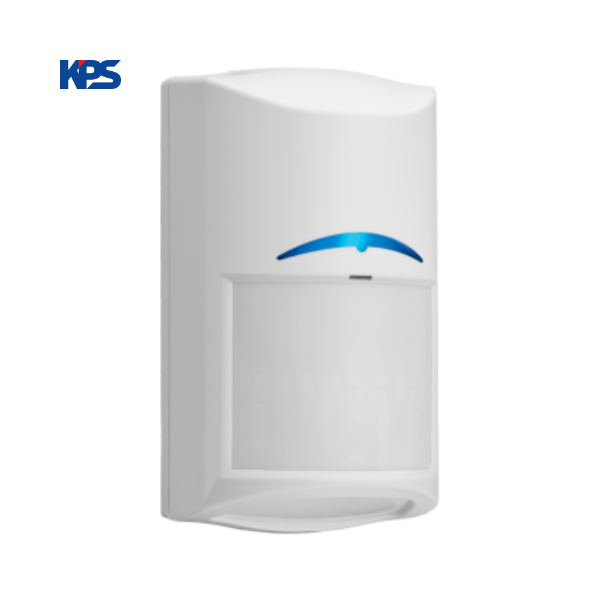

High-end motion sensor CDL2-A15H Bosch

High-end motion sensor CDL2-A15H Bosch

The Bosch CDL2-A15H is a premium motion sensor from Bosch's Commercial Series Gen 2, incorporating TriTech technology that combines a passive infrared sensor (PIR) and a Doppler microwave radar, along with anti-masking. It is designed to provide accurate detection performance and minimize false alarms in commercial and industrial security applications.

Outstanding features:

• TriTech AM models include active infrared anti-mask.

• C2DT: Cloak and Camouflage Detection Technology maximizes catch performance against intruders attempting to cover their infrared signal.

• EOL Resistors and mounting height.

• MEMS inside. Tamper and Impact stability.

• Active white light suppression.

Technical specifications

• Alarm relay contact type: NC (Normally Closed)

• Dimensions (H x W x D): 120 x 70 x 55 mm

• Operating temperature: 5 – 40°C

• Operating voltage: 9 – 15 VDC

• Tamper relay contact type: NC (Normally Closed)

• Trouble relay contact type: NC (Normally Closed)
