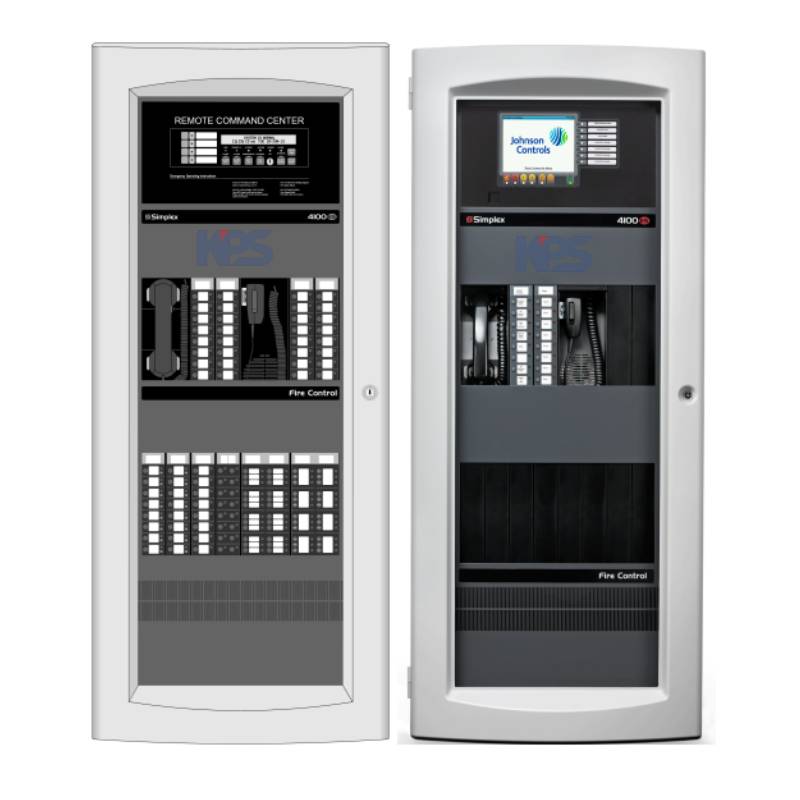

Basic Remote Annunciator Simplex 4100-9617

Basic Remote Annunciator Simplex 4100-9617

The Simplex 4100-9617 is a basic version of the remote annunciator, equipped with an 8-inch ES Touch Screen color touchscreen, allowing for remote display and control of fire alarm system status within the Simplex 4100ES system. The device is designed for secondary monitoring locations where full expansion modules are not required, but still need an intuitive display interface, fast operation, and high reliability.

The 4100-9617 uses direct power from the FACU central control panel, simplifying configuration, reducing investment costs, and making it suitable for buildings requiring multiple distributed fire alarm status display points.

Key Features

• 8-inch ES Touch Screen: 800 × 600 resolution color touchscreen, clearly displaying fire alarm, monitoring, and incident events.
• Displays up to 8 events simultaneously without scrolling, supporting quick system status identification.
• Intuitive menu interface, similar to tablet/smartphone operation, reducing troubleshooting time.
• Supports important functions such as Acknowledge, Alarm Silence, and Reset via hard and soft keys.
• Communicates with FACU via RUI/RUI+ supervised, ensuring stable and continuous communication.
• Minimalist, cost-effective design: The basic version does not support expansion modules such as audio, printer, RS-232, etc., suitable for secondary monitoring points.

Technical Specifications

• Model: 4100-9617
• Device Type: Basic Remote Annunciator with ES Touch Screen
• Compatible System: Simplex 4100ES
• Components Included:
• ES Touch Screen Display
• Expansion Bay with PDI
• Remote TIC Module
• Power Supply:
• Direct power supply from FACU (Federal Access Control Unit)
• Display Screen:
• Size: 8 inches (203 mm)
• Resolution: 800 × 600 pixels
• Touch Technology: Resistive (glove-free operation)
• Number of Events Displayed: Up to 8 events, scroll-free operation
• Control Functions:
• Acknowledge
• Alarm Silence
• Reset
• Communication Connection:
• RUI / RUI+ supervised communication
• Current Consumption:
• Supervisory Mode: 95 mA
• Alarm Mode: 165 mA
