Camera WV-S2536LNA 2MP (1080p) Vandal Resistant Outdoor

Camera WV-S2536LNA

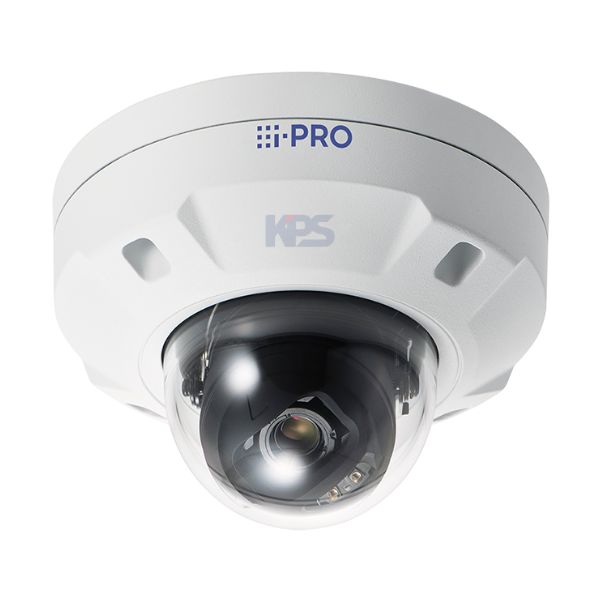

Camera WV-S2536LNA is a high-end outdoor dome network camera line of i-PRO (formerly Panasonic) S Series, integrating advanced AI engine, intelligent analysis capabilities and international security standards. With a durable design, superior imaging technology and edge data analysis capabilities (Edge AI), this product is the ideal choice for professional surveillance systems that require high quality, stability and absolute security.

The WV-S2536LNA is equipped with a new generation 1/2.8” CMOS sensor, supporting recording at Full HD resolution (1920x1080) with a frame rate of up to 60fps, helping to capture sharp, detailed images without jerking when tracking fast-moving objects.

Super Dynamic technology up to 144dB allows image processing in conditions of large light differences - one of the common challenges in entrance areas, parking lots, warehouses with direct or strong reflections. Thanks to the ability to balance light and dark extremely effectively, the camera ensures accurate recognition of faces, license plates, or other important details even when backlit.

In addition, the Intelligent Auto (iA) feature helps the camera automatically adjust exposure, aperture, shutter speed and other technical parameters in real time, to achieve optimal image quality in all environments and weather conditions.

Outstanding features

• Full HD resolution (1080p) @ 60fps with 1/2.8" CMOS sensor for sharp, smooth images.
• Super Dynamic 144dB technology handles well in environments with high light differences.
• Integrated AI (Edge AI): recognizes people & vehicles, analyzes behavior, counts people, filters false alarms.
• Smart infrared (IR) for clear night vision up to 40m.
• 2.9–9mm varifocal lens, flexible viewing angle 112.7° to 34.6°.
• H.265 Smart Coding compression standard - saves bandwidth and storage capacity.
• High-end security: TPM, FIPS 140-2 Level 3 encryption, NDAA compliance, Edge Security support.
• Durable design: IP66 water and dust resistance; IK10 impact resistance; Stable operation in all conditions.
• Supports microSD card slot up to 512GB, independent recording on site.
• Compatible with VMS management system, ONVIF, and diverse network protocols.

Specifications

• Image sensor: 1/2.8 inch CMOS, high sensitivity
• Resolution: Full HD 1080p (1920 x 1080), frame rate up to 60fps (H.265/H.264)
• Motorized lens: 2.9mm – 9.0mm (3.1x optical zoom), wide viewing angle up to 113°
• Night vision: Built-in IR LED, night vision up to 70 meters
• Light sensitivity:
• Color: 0.007 lux (F1.6, AGC ON)
• B&W: 0 lux (with infrared)
• Backlight compensation: Super Dynamic up to 144 dB
• Built-in AI features:
• Support 2 AI applications simultaneously (AI Face, AI People, AI Privacy Guard, etc.)
• Real-time intelligent analysis
• Protection standard:
• IP66: Dust/water resistant
• IK10: Impact resistant
• Anti-corrosion (salt-resistant paint)
• High security level:
• Integrated SE security chip meets FIPS 140-2 Level 3 standards
• Encryption support: HTTPS, SRTP, IEEE802.1X
• Local storage: microSDXC card slot supports up to 512GB
• Power supply:
• PoE (IEEE802.3af)
• DC 12V (optional)
• Operating temperature: From -40°C to +60°C, stable operation in harsh environments
• ONVIF standard compatibility: G / S / T / M
• Dimensions: Diameter 164 mm × Height 138 mm
• Weight: About 1.7 kg

Datasheet

Featured Applications

With IP66 dust/water resistance and IK10 vandal resistance standards, combined with long-range infrared up to 40m, the camera is ideal for installation in outdoor locations such as parking lots, main gate entrances, fences, school yards, airports, seaports, warehouses, etc.

Integrated AI helps identify people, vehicles, analyze movement behavior, count people, and filter out false alarms, thereby supporting effective monitoring in industrial parks, factories, hospitals, schools, commercial centers, banks, etc.

Supporting FIPS 140-2 Level 3 encryption, TPM security chip and NDAA compliance, the camera is suitable for installation in government agencies, the military, key infrastructure projects, banks, etc.

With 144dB Super Dynamic WDR technology and high-sensitivity sensors, the camera provides detailed images in both bright and backlit environments such as basement parking lots, hallways there is sunlight,...
