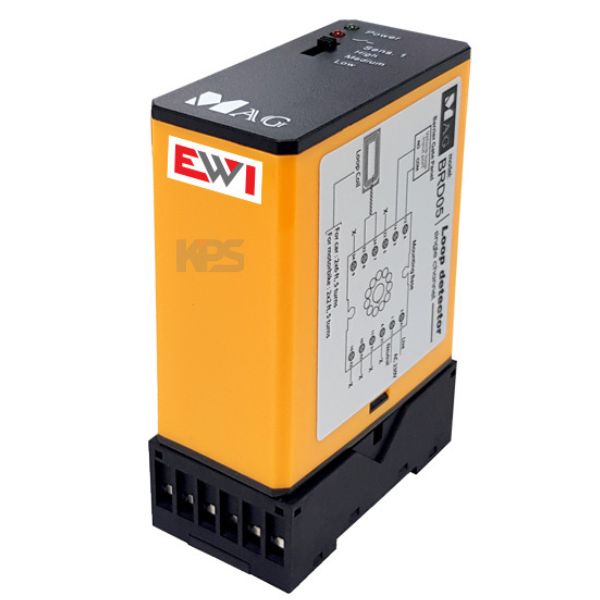

BRD05 Vehicle Loop Detector with Extra Wide Inductance (EWI) MAG

MAG BRD05

The BRD05 is a single-channel loop detector enhanced with EWI (Extra Wide Inductance) technology, offering a wider detection range with improved stability. It features adjustable sensitivity to customize detection for vehicles of different heights.

MAG BRD05 is widely used in traffic management systems, automated parking, access control systems, and security gates in buildings.

Key Features

• Wide Inductance Technology (EWI): Ensures optimal performance within an inductance range of 80μH to 300μH and supports a maximum inductance range of 40μH to 1000μH.
• Fast Reaction Time: Responds in just 50ms, providing quick vehicle detection.
• High Durability: Operates reliably in a wide temperature range from -25˚C to +70˚C.
• Easy Installation: Supports optimal loop connections under 10m and a maximum feeder length of 200m (twisted at least 20 times per meter).
• Compact Design: Measures only 36mm x 78mm x 85mm and weighs 250g.

Technical Specifications

• Input Voltage: 230V AC ± 10%
• Operating Temperature: -25˚C to +70˚C
• Reaction Time: 50ms
• Frequency Range: 20kHz to 200kHz
• Loop Coil Inductance: 40μH to 1000μH (optimal: 80μH–300μH)
• Optimal Loop Length: ≤10m
• Maximum Feeder Length: 200m (twisted ≥20 times per meter)
• Dimensions: 36mm x 78mm x 85mm
• Weight: 250g
