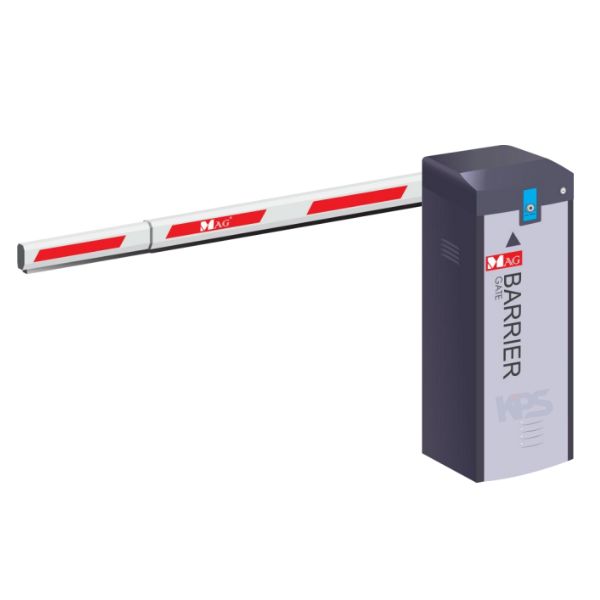

BR600T Intelligent Vehicle Barrier Gate

BR600T Intelligent Vehicle Barrier Gate

The MAG BR600T series is a modern, high-performance vehicle barrier gate system designed to offer a premium, prestigious impression while providing exceptional functionality for various applications, including high-end residential, commercial buildings, airports, shopping malls, and more. It is designed to balance performance, stability, and affordability, making it suitable for various environments without the high cost of the best gates or the frequent breakdowns of cheaper alternatives.

Key Features:

• Intelligent Control System: The advanced smart motor control system features a unique lever design that allows for swift arm movement, minimizing bouncing.
• Dual Spring Mechanism: The DSP Dual Spring design ensures smoother arm motion, reducing vibration and improving durability.
• Safety Features: The DSD Dual Sensor Detection system provides double safety by monitoring current spikes and motor rotation to automatically reverse the arm if obstructed.
• BlueSpeed Motor: The motor operates at a low RPM to achieve high-speed opening while reducing mechanical wear, ensuring longer service life.
• Improved Air Ventilation: A new fan design ensures more efficient cooling for higher traffic flow, enabling better performance during peak hours.
• NLS V2 Design: The new magnet sensor eliminates blind spots, ensuring consistent opening and closing, even in varying lighting conditions.
• Auto-Reverse Function: The arm automatically reverses when an obstacle is detected during closing, and photo beams can be added for enhanced safety.
• Heavy Duty: The design eliminates mechanical limit switches and incorporates a counterweight spring to prevent motor overloads, making the system highly reliable.
• Fast Speed: The BR618T model offers a fast 1.8-second opening/closing time, improving traffic flow and reducing congestion.
• User-Friendly: In the event of a power failure, the arm can be manually lifted by using a key to unlock the clutch, without requiring access to internal parts.
• Low Maintenance: The epoxy powder paint finish keeps the unit looking new, and the AC-based motor is maintenance-free.

Technical Specifications

• Motor: MAG Bluespeed AC motor with high torque and low speed rotation.
• Power Supply: 220V ± 10% AC, 50/60Hz.
• Cycle Life: Up to 4 million cycles, approximately 5.5 years.
• Arm Speed: 1.8, 3, or 6 seconds.
• IP Rating: IP44, ensuring durability and resistance to weather conditions.
• Arm Lengths: Available in 3m, 4m, 4.5m, or 6m lengths, with custom lengths available on request.
