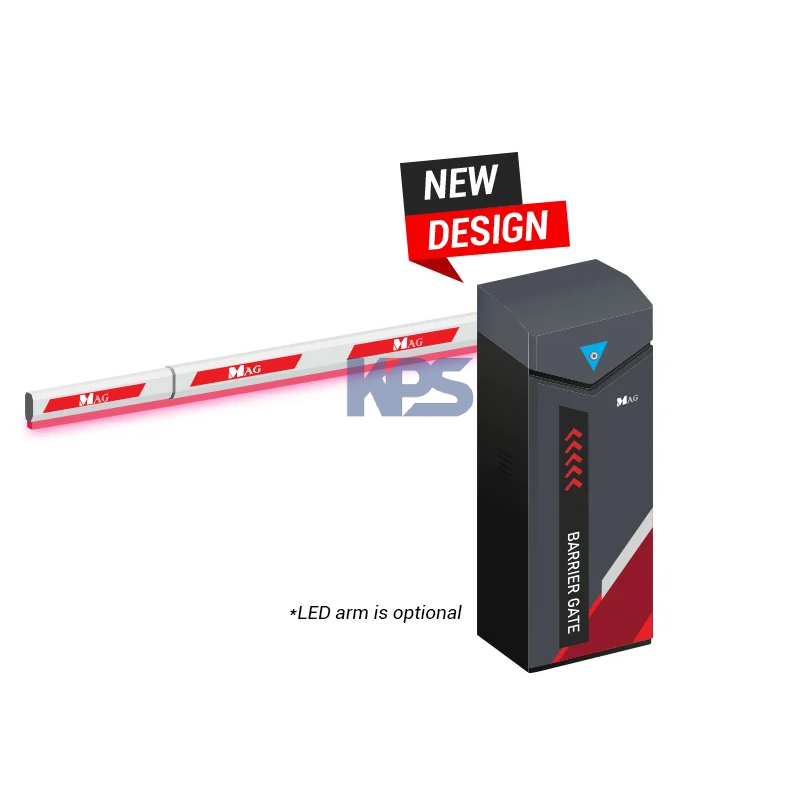

MAG BG600 – Automatic barrier, IP44, AC motor 460RPM

BG600 MAG Barrier Gate

BG600 MAG Barrier Gate is a modern, durable and secure access control solution, upgraded from the award-winning BR600T series. It uses a low-speed, maintenance-free BlueSpeed AC motor, providing stable performance over a long period of time. Thanks to the DSD dual sensor, the barrier can automatically reverse when encountering an obstacle, enhancing the safety of vehicles and passersby.

DSP dual spring mechanism system helps the arm operate smoothly, reducing vibration and wear. The new design with NLS V2 magnetic sensor replaces the optical sensor, completely eliminating blind spots and ensuring accurate opening/closing in all lighting conditions. With flexible opening and closing times (1.8s / 3s / 6s), integrated traffic lights, IP44 water resistance and a lifespan of up to 4 million cycles, the BG600 is suitable for both residential parking lots and high-intensity industrial traffic systems.

The lightweight aluminum profile arm has many options: straight, telesco, 90° folding, integrated LED... easily meeting different space requirements. In case of power failure, the arm can be opened manually with a key without accessing the internal components - increasing security and convenience in maintenance.

Specifications

• Motor: MAG BlueSpeed AC Motor
• Handle opening speed: 1.8s / 3s / 6s
• Motor rotation speed: 460 ± 40 RPM
• Maximum torque: 2.1 ± 0.1 N.M
• Input power: 220V ± 10% AC, 50/60Hz
• Power consumption: 80W (1.25A @ 240V)
• Operating temperature (mechanical): -40°C to 75°C
• Operating temperature (electric): -10°C to 75°C
• Relative humidity: < 90%, non-condensing
• Protection index (IP): IP44
• Mean cycle before failure (MTBF): 4 million times of opening/closing
• Lubricant: Grease
• Housing material: Galvanized steel with epoxy paint
• Security lock Guard: Cam lock with key
