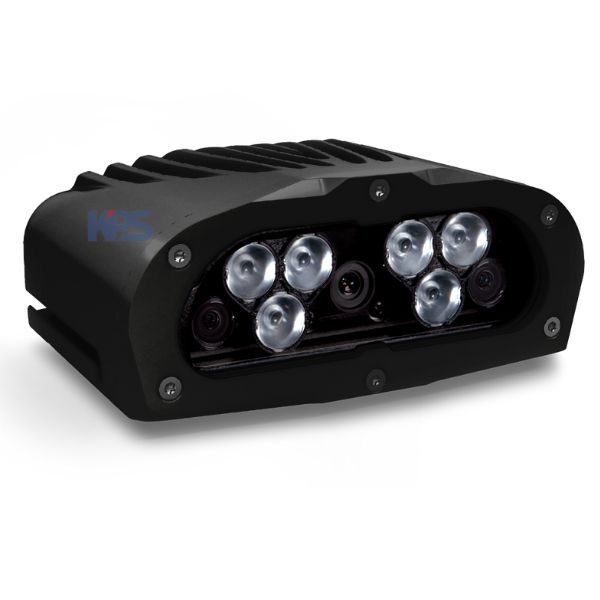

AutoVu™ SharpZ3 Automatic License Plate Recognition (ALPR) System

The AutoVu SharpZ3 is a high-performance mobile automatic license plate recognition (ALPR) system that combines edge processing technology and machine learning to enhance license plate recognition and vehicle analytics efficiency. With the ability to operate in all lighting conditions and complex environments, SharpZ3 provides high accuracy and deep situational awareness in traffic monitoring.

This system utilizes advanced optical sensors and is capable of recognizing various types of license plates, from flat designs to embossed and digital plates. The third optical sensor of the SharpZ3 helps identify surrounding objects, providing a comprehensive view and placing recognitions in the correct context.

With a modular design, AutoVu SharpZ3 allows easy expansion and future upgrades, optimizing costs and protecting long-term investments. The product is equipped with powerful processors, high security, environmental resilience, and can operate continuously in harsh conditions.

AutoVu™ SharpZ3 is the ideal solution for traffic monitoring, parking management, and applications requiring advanced vehicle analysis with superior accuracy and easy scalability.

Key Features:

• Efficient operation with low power consumption, maximizing machine learning capabilities directly at the device.
• The third optical sensor enables SharpZ3 not only to recognize license plates but also to detect surrounding objects, improving context accuracy.
• Superior license plate recognition with the ability to identify various plate types, from flat, embossed to digital plates, providing high accuracy even in complex urban environments.
• Designed for easy future expansion and upgrades, reducing hardware replacement costs.

Technical Specifications

ALPR Camera:

• Resolution: 1456 (H) x 1088 (V) @ 30fps, monochrome, global shutter.
• Recognition range: Up to 19 meters with retro-reflective license plates.
• Lens options: 8mm, 12mm, 16mm, 25mm.

Context Camera:

• Resolution: 1456 (H) x 1088 (V) @ 30fps, color, B/W night mode with 940nm illuminator.
• Lens options: Based on ALPR lens configuration.

Illuminators:

• LED with wavelengths of 740nm, 850nm, 940nm, 590nm.

Base Unit:

• I/O Ports: 2x 10/100/1000 Ethernet, 4 digital inputs (0-32Vdc), 4 dry-contact outputs (relays).
• Power supply: 12/24Vdc (9-32Vdc).
• Processor: Intel Atom E3950, Intel Myriad X co-processors.
• Durability: Waterproof (IPx6, IPx7), shockproof (IEC 60068), impact-resistant (IK08).

Dimensions and Weight:

• Camera: 5.6 x 13 x 10.4 cm, 0.86 kg.
• Base unit: 9.1 x 21.8 x 23.6 cm, 2.0 kg.

Operating Temperature:

• Camera: -40°F to 140°F (-40°C to 60°C).
• Base unit: -40°C to 65°C.

PoE Module:

• Connect up to 4 PoE devices, supporting up to 30W power.

Navigation Module:

• Integrated GNSS and inertial sensors, supporting GPS and Galileo systems.
