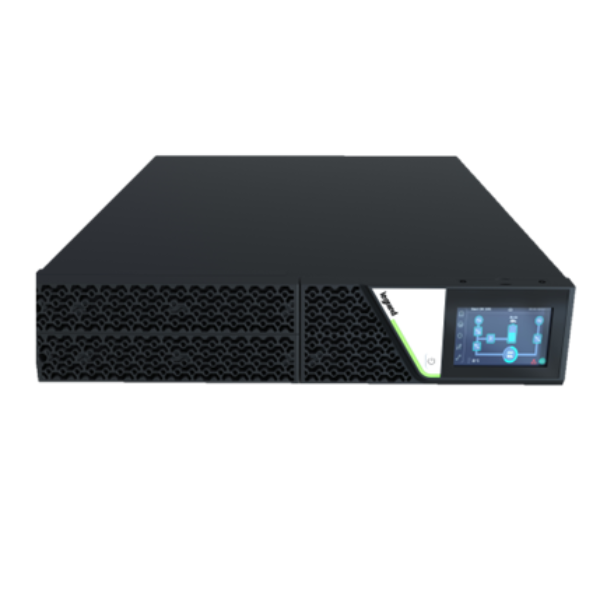

UPS Legrand KEOR DK 311345 1000 (2U)

Product Code: 311345
Product Line: KEOR DK
Product Type: Tower 2U - 1kVA
Brand: Legrand

YÊU CẦU BÁO GIÁ

UPS Legrand Keor DK 311345

The Legrand Keor DK 311345 is an On-line Double Conversion UPS (VFI-SS-11) with a capacity of 1000 VA / 1000 W, providing continuous and stable power for sensitive equipment such as servers, network systems, and industrial devices.
It features a flexible convertible design for tower or 19” rack (2U) installation, equipped with a touchscreen display and intuitive LED status bar for easy monitoring and operation.

Key Features

On-line Double Conversion (VFI-SS-11) technology delivers a pure sinewave output, fully isolating connected equipment from electrical noise and voltage fluctuations.
High efficiency up to 92%, saving energy and reducing heat generation.
Wide input voltage range (176–280 V) ensures stable operation even under fluctuating mains conditions.
High input power factor (>0.99) minimizes power loss and optimizes performance.
8A charging current supports external battery expansion for longer backup time.
Integrated EPO, SNMP, ROO, and dry contacts allow seamless integration into centralized management systems.
Low noise level ( makes it ideal for quiet environments such as offices or control rooms.
Compact 2U design with IP20 protection, compliant with EN 62040-1, EN 62040-2, and EN 62040-3 international standards.

Technical Specifications

Parameter	Specification
Rated Power (VA)	1000 VA
Active Power (W)	1000 W
Technology	On-line Double Conversion (VFI-SS-11)
Output Waveform	Sinusoidal
Installation Type	Convertible Tower / 19" Rack
Nominal Voltage	230 V
Nominal Frequency	50/60 Hz ±5% (autosensing)
Input Voltage Range	176 V – 280 V
Input Current THD	< 5%
Input Power Factor	> 0.99
Output Voltage	230 V ±1%
Output Frequency	50/60 Hz (configurable via LCD) ±0.1%
Efficiency	Up to 92%
Crest Factor	3:1
Output Voltage THD	< 3% (linear load)
Output Voltage Deviation	±1%
Automatic Bypass	Yes
External Maintenance Bypass	Optional
Internal Backup Time	- minutes
External Battery Expansion	Yes
Charging Current	8 A
Display	Touchscreen with LED Status Bar
Communication Ports	ROO, USB, RS232
Network Interface	SNMP
Reverse Fan Protection	Yes
Emergency Power Off (EPO)	Yes
Dry Contacts	Integrated
Dimensions (H x W x D)	440 x 88 (2U) x 454 mm
Net Weight	x kg
Operating Temperature	0 – 40 °C
Protection Degree	IP 20
Relative Humidity	< 95%, non-condensing
Noise Level at 1 m	< 50 dBA
Compliance Standards	EN 62040-1, EN 62040-2, EN 62040-3
