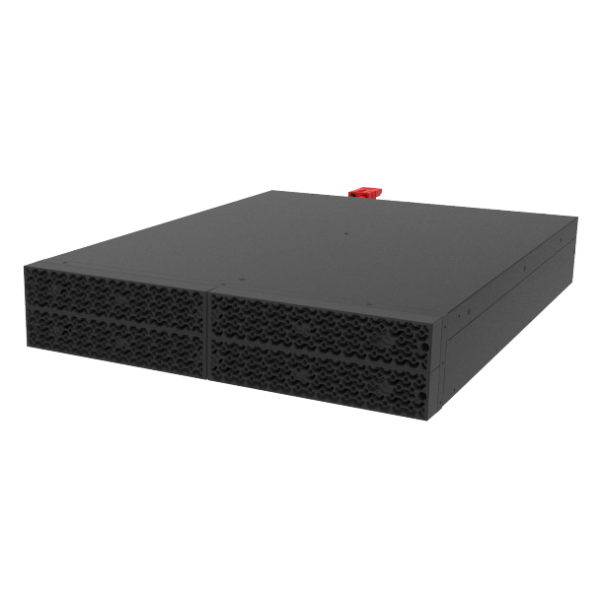

Battery Cabinet Keor Dk R/T 5-6-10 kVA 311364 Legrand

Product Code: 311364
Product Line: KEOR DK
Brand: Legrand

YÊU CẦU BÁO GIÁ

Battery Cabinet Keor DK R/T 5–6–10 kVA – Model 311364

The Legrand Keor DK 311364 is a dedicated external battery cabinet designed for Keor DK R/T 10 kVA UPS systems, helping to extend backup time and ensure a stable and reliable power supply for critical equipment.

Equipped with 20 VRLA batteries (12 V – 9 Ah each), configured into 5 blocks of 4 batteries, the cabinet provides a nominal voltage of 240 VDC, delivering optimal performance and reliability for demanding power applications.

Its 3U design is compatible with both 19” rack and tower installations, offering flexible deployment in various environments.

Key Features

Optimized design for Keor DK R/T 10 kVA UPS, delivering exceptional extended backup capability.
High-quality VRLA batteries – sealed, maintenance-free, safe, and durable.
Smart 5-block configuration for easy inspection, replacement, and maintenance.
Compact 3U size, suitable for both rack and tower installation, saving valuable space.
Stable operation even under high temperature and humidity conditions, ideal for industrial applications.
Certified with CE, CMIM, and UKCA, fully compliant with European safety and EMC standards.
Equipped with industrial-grade DC connectors ensuring safe and reliable connections.

Technical Specifications

Parameter	Description
Model	3 113 64
Product line	Keor DK – Battery Cabinet (External Battery Module)
Compatible UPS model	3 113 52
Number of batteries	20 units
Battery configuration	5 blocks, each with 4 batteries
Battery type	Sealed lead-acid, maintenance-free (VRLA – Valve Regulated Lead Acid)
Nominal voltage per battery	12 VDC – 9 Ah
Total nominal voltage	240 VDC
DC connector type	Standard 2-pole industrial connector (+ / –), as illustrated in the documentation
Net weight	65.5 kg
Dimensions (H × W × D)	132 mm (3U) × 440 mm × 700 mm
Operating temperature	0 to +40 °C (battery life decreases above 25 °C)
Relative humidity (operation)	0–95%, non-condensing
Storage temperature	–10 to +50 °C (without batteries) / 0 to +40 °C (with batteries)
Protection rating	IP20
Pollution degree	PD2
Climatic category	3K22 (according to EN IEC 60721-3-3)
Biological class	3B2 (according to EN IEC 60721-3-3)
Mechanical particle class	3S2 (according to EN IEC 60721-3-3)
Mechanical stress class (vibration/shock)	3M11 (according to EN IEC 60721-3-3)
Operating altitude	Up to 2000 m above sea level without power derating
Certifications	CE, CMIM, UKCA
Safety standard	2014/35/EU Directive – EN IEC 62040-1
EMC standard	2014/30/EU Directive – EN IEC 62040-2
