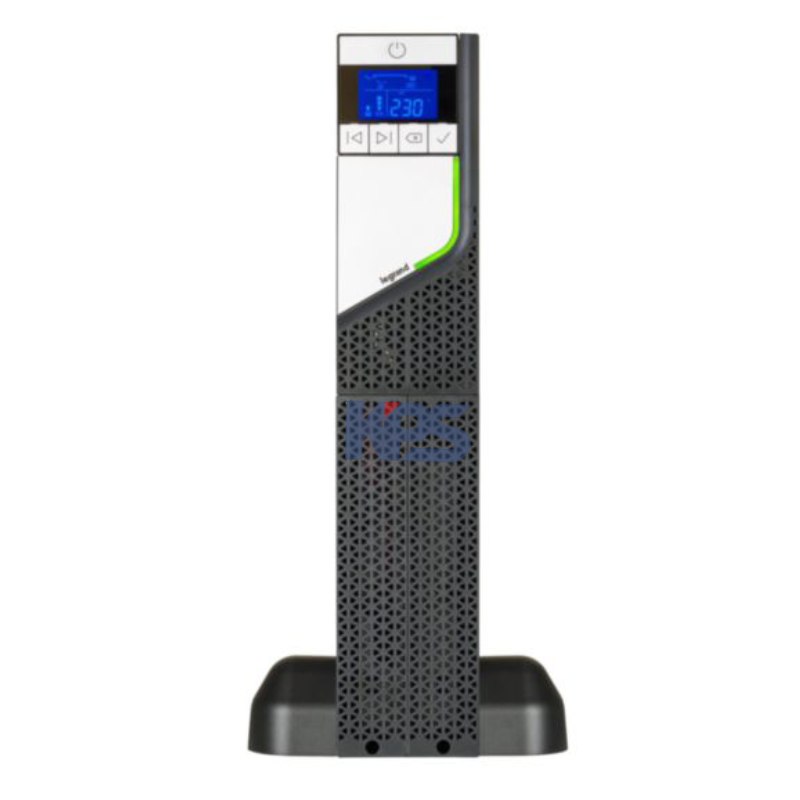

Legrand Keor SPE 3000VA LCD Rack/Tower UPS 311072

Legrand Keor SPE 311072 UPS

In critical IT infrastructure systems requiring near-absolute continuous operation, UPS systems not only serve as backup but also as a core layer of protection for the entire system.

The Legrand Keor SPE 311072 UPS is designed for mission-critical environments such as mini data centers, enterprise server rooms, and core network systems, with a power capacity of up to 3000VA / 2700W and a power factor of 0.9.

The device allows powering multiple devices simultaneously through 8 IEC C13 ports and 1 IEC C19 port (16A), accommodating both standard and high-power equipment. A convertible LCD screen supports live monitoring of system status, reducing response time in case of a malfunction.

Key Features:

• Extremely high power output of 3000VA / 2700W, power factor 0.9
• 19” (2U) Rack/Tower design
• Convertible LCD screen for intuitive monitoring
• 8 x IEC C13 + 1 x IEC C19 (16A) for high load support
• Line-Interactive technology for stable input voltage
• Wide voltage range 175-288V
• Pure sine wave output
• Low voltage distortion ≤ 3%
• High efficiency: Backup time ~2 minutes (full load)
  • 85% (normal)
  • 98% (eco mode)
• Supports SNMP, USB, RS232, EPO, Dry Contact management

Technical Specifications

• Model: 311072
• Apparent power: 3000VA
• Actual power: 2700W
• Technology: Line-interactive
• Input voltage: 175 - 288V
• Input frequency: 47 - 63 Hz
• Output voltage: 208 - 240V
• Output frequency: 50 - 60 Hz
• Waveform: Pure sinewave
• Backup time: ~2 minutes
• Efficiency: 85% / 98% (eco)
• Communication ports: USB, SNMP, RS232, EPO, Dry Contact
• Output: Input: IEC C20
  • 8 x IEC C13
  • 1 x IEC C19 (16A)
• Mounting standard: 19” Rack (2U) / Tower
• Dimensions: 88 x 440 x 600 mm
• Weight: 29.5 kg
• Noise level: 55 dB
• Battery: VRLA (sealed lead-acid battery)
• Operating temperature: 0 - 40°C
• Grade Protection: IP20
