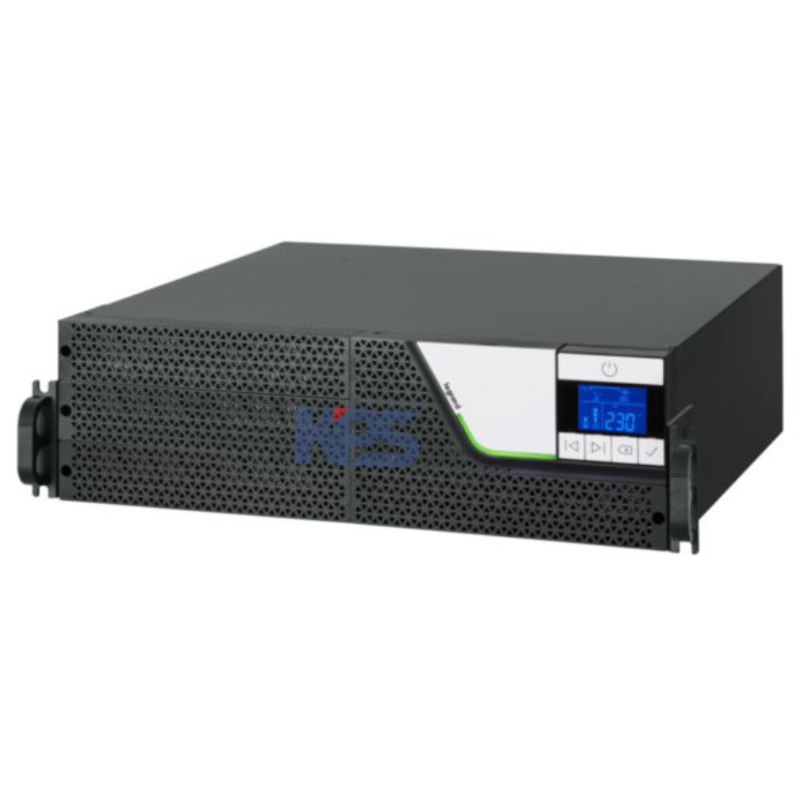

UPS Legrand 2200VA Rack 3U LCD Keor SPE 311071

Legrand Keor SPE 311071 UPS

For critical IT systems, the deciding factor is not only power capacity but also longer-term stability during power outages and the ability to maintain system operation during switching periods.

The Legrand Keor SPE 311071 UPS is designed with a 3U rackmount structure, providing optimal space for the battery and heat dissipation, thus ensuring more stable operation in continuously high-load environments.

With a capacity of 2200VA / 1980W and a power factor of 0.9, the device is suitable for servers, storage systems, and core network equipment. Its versatile power supply capabilities with 8 IEC C13 ports and 1 IEC C19 port (16A) help to meet the needs of both standard and high-power equipment within the same system.

Key Features

• High power output 2200VA / 1980W, power factor 0.9
• 19” (3U) Rack/Tower design - optimized battery and heat dissipation
• Convertible LCD display - intuitive monitoring
• 8 x IEC C13 + 1 x IEC C19 (16A) - flexible power supply
• Line-Interactive technology - voltage stabilization
• Wide voltage range 175-288V
• Pure sine wave
• Low voltage distortion ≤ 3%
• High efficiency: Backup time ~2 minutes (full load)
  • 85% (normal)
  • 98% (eco mode)
• Supports SNMP, USB, RS232, EPO, Dry Contact management

Technical Specifications

• Model: 311071
• Apparent power: 2200VA
• Actual power: 1980W
• Technology: Line-interactive
• Input voltage: 175 - 288V
• Input frequency: 47 - 63 Hz
• Output voltage: 208 - 240V
• Output frequency: 50 - 60 Hz
• Waveform: Pure sinewave
• Backup time: ~2 minutes
• Efficiency: 85% / 98% (eco)
• Communication ports: USB, SNMP, RS232, EPO, Dry Contact
• Output: Input: IEC C20
  • 8 x IEC C13
  • 1 x IEC C19 (16A)
• Mounting standard: 19” Rack (3U) / Tower
• Dimensions: 132 x 440 x 500 mm
• Weight: 28.3 kg
• Noise level: 55 dB
• Battery: VRLA (sealed lead-acid battery)
• Operating temperature: 0 - 40°C
• Protection rating: IP20
