ARD-SELECT-WPK Reader

ARD-SELECT-WPK Reader

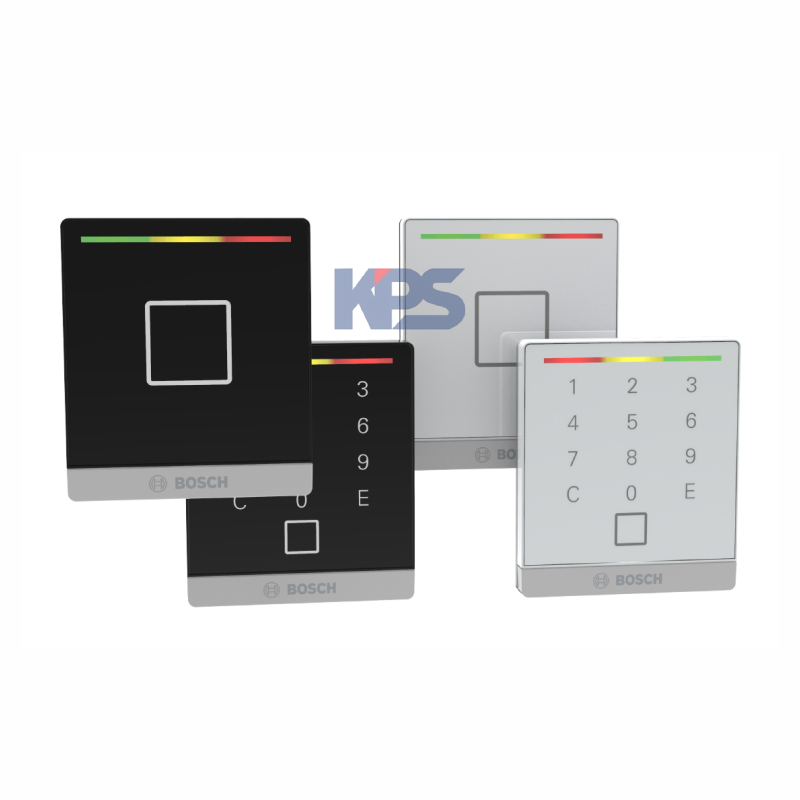

ARD-SELECT-WPK Reader is a card reader using the phg_crypt security protocol, supporting MIFARE Classic, MIFARE DESFire EV1 & EV2, LEGIC Prime and LEGIC Advant. The device has an integrated keypad, which enhances security and access control using PIN codes.

With a white design, the reader is suitable for many installation spaces and can be mounted in the wall or surface mounted (when using the optional frame), optimizing the overall appearance.

The device meets IP54 protection standards, is dust and water resistant, ensuring stable operation in environments from -25°C to 60°C, suitable for both indoor and outdoor use.

ARD-SELECT-WPK uses RS485 communication with the phg_crypt protocol - a highly secure protocol, suitable for the MATRIX access control system provided by Bosch Energy and Building Solutions.

The device operates on a frequency of 13.56 MHz, has a maximum reading distance of 65 mm (depending on the card type), providing fast and accurate identification. In addition, the integrated keypad, 3 status LEDs, audible alarm, and tamper detection function enhance the user experience and ensure system security.

Specifications

• Size: 88 × 101 × 35 mm (unmounted) / 88 × 101 × 21 mm (mounted)
• Color: White
• Material: Plastic
• Weight: 137 g – 139 g
• Protection standard: IP54 (dustproof, light water)
• Operating temperature: -25°C to 60°C
• Operating voltage: 8VDC – 30VDC
• Power consumption: 3.5 VA maximum, 2.5 VA typical
• Keyboard: Yes
• Status indicator: 3 LEDs
• Sound buzzer: Yes
• Anti-vandal function: Yes
• Reading frequency: 13.56 MHz
• Reading distance: Up to 65 mm (depending on card type)
• Supported cards: MIFARE Classic, MIFARE DESFire EV1 & EV2, LEGIC Prime, LEGIC Advant
• Communication: RS485
• Protocol: phg_crypt
• Compatible system: MATRIX access system
