Rack Cabinet 52U 800 x 1100 SR52811BVA3-FAN SmartRak 3.0 Legrand

52U D1200 Rack Cabinet SR52811BVA3-FAN

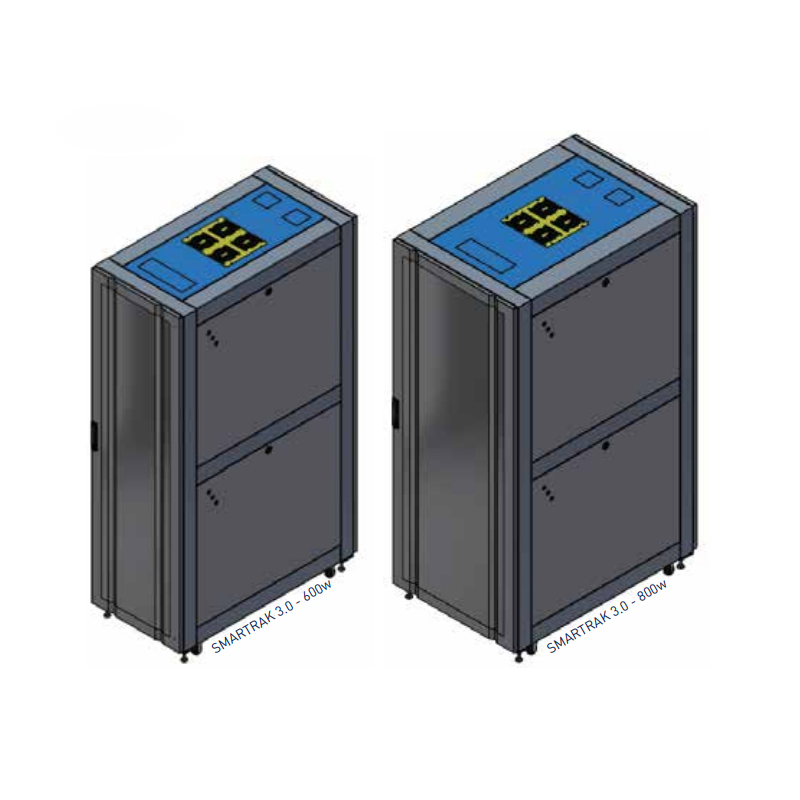

The SR52811BVA3-FAN Rack Cabinet belongs to Legrand's SmartRak 3.0 series, specially designed for data centers, server rooms, network systems and telecommunications. With a size of 52U (height 2491mm), width 800mm, depth 1100mm, the product provides optimal space to install many standard 19" devices, ETSI, Metric, while ensuring effective cable management with a large number of cables coming in and out from both above and below the cabinet.

This Rack Cabinet is highly flexible, supports many different brands of server equipment and ensures easy system expansion in the future.

Outstanding features:

• Flexible & convenient design: 75% perforated front door, two-wing rear door for optimal airflow.
• Effective cable management & heat dissipation: Supports cable management from above and below, integrated fan tray.
• Safety & durability: Static load capacity 1500kg, SPCC cold-rolled steel frame, anti-rust electrostatic paint.
• Meet international standards: IEC 297-2, EIA-310-D, RoHS, UL 60950-1,...
• Wide application: Used for data center, network system, server, security monitoring.

Technical parameters

• Dimensions & Load capacity
• Dimensions (H x W x D): 2491mm x 800mm x 1100mm
• Height (U): 52U
• Static load capacity: 1500kg
• Structure & Materials
• SPCC cold-rolled steel frame, 1.2 - 2.0mm thick
• Front door with 75% perforation, one wing - Rear door with 75% perforation, two wings
• Rotary handle locking system, shared key
• Removable side panels - Bottom & top of cabinet with wiring holes & fan tray
• Standards & Colors
• Installation standard: 19”, ETSI, Metric – IP20 – Fully grounded
• Meeting standards: IEC 297-2, EIA-310-D, RoHS, UL 60950-1,...
• Paint color: Black (RAL 9005), anti-rust powder coating

SmartRak 3.0 Ordering Information
