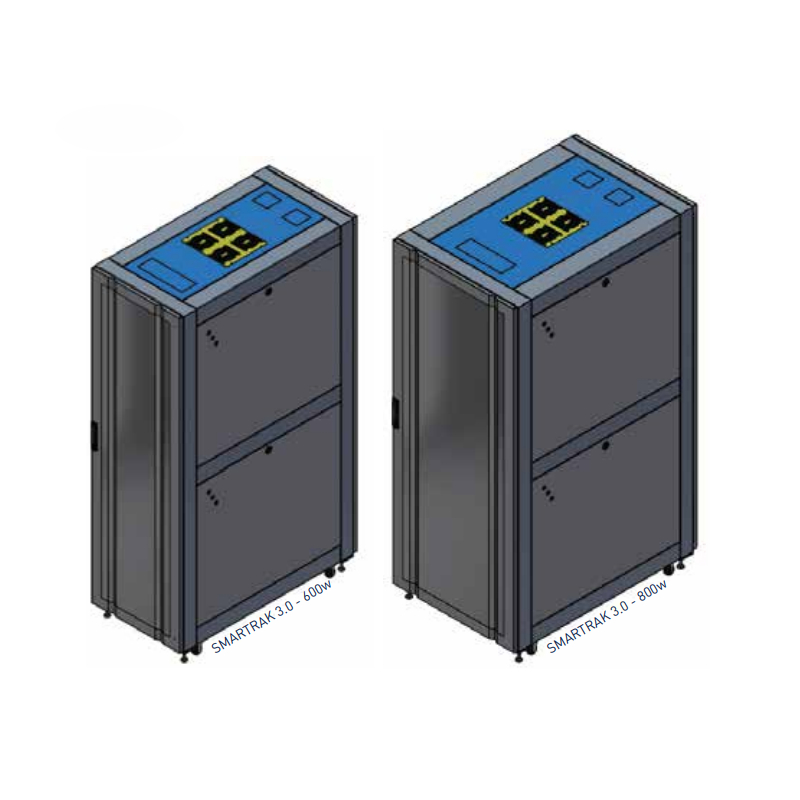

Rack Cabinet 50U D8000 SR50680BVA3-FAN SmartRak 3.0 Legrand

50U D800 Rack Cabinet SR50680BVA3-FAN

50U 600 x 800 Rack Cabinet SR50680BVA3-FAN belongs to Legrand's SmartRak 3.0 series, specially designed for data centers and telecommunications systems. With a width of 800mm, the cabinet provides spacious space for installing network equipment and servers, helping to optimize cable management and air circulation.

The cabinet has a solid structure made of SPCC cold-rolled steel, the front and rear doors are perforated 75% to optimize heat dissipation. The integrated fan system ensures stable temperature maintenance. The equipment mounting bar can be flexibly adjusted in depth, meeting a variety of system deployment needs.

The product meets international standards such as IEC 297-2, DIN 41494, EIA-310-D, RoHS, UL 60950-1, ensuring safety and high durability, suitable for data centers, server rooms and enterprise network systems.

Specifications

• Dimensions (WxDxH): 600mm x 800mm x 2402mm
• Usable height: 50U
• Static load: 1500kg
• Material: SPCC cold-rolled steel, black powder coating (RAL 9005)
• Front & rear doors: 75% perforated, rotating handle lock
• Cable management: Supports wiring from top and bottom of cabinet
• Fan tray: Integrated cooling fan system
• Standards: IP20, IEC 297-2, DIN 41494, EIA-310-D, RoHS, UL 60950-1
• Equipment mounting bar: Flexible depth adjustment, U number marking from bottom to top
• Equipment mounting hole: Standard 19” (ETSI, Metric)
• Security: Synchronous locking of front, rear and side panels

SmartRak 3.0 Ordering Information
