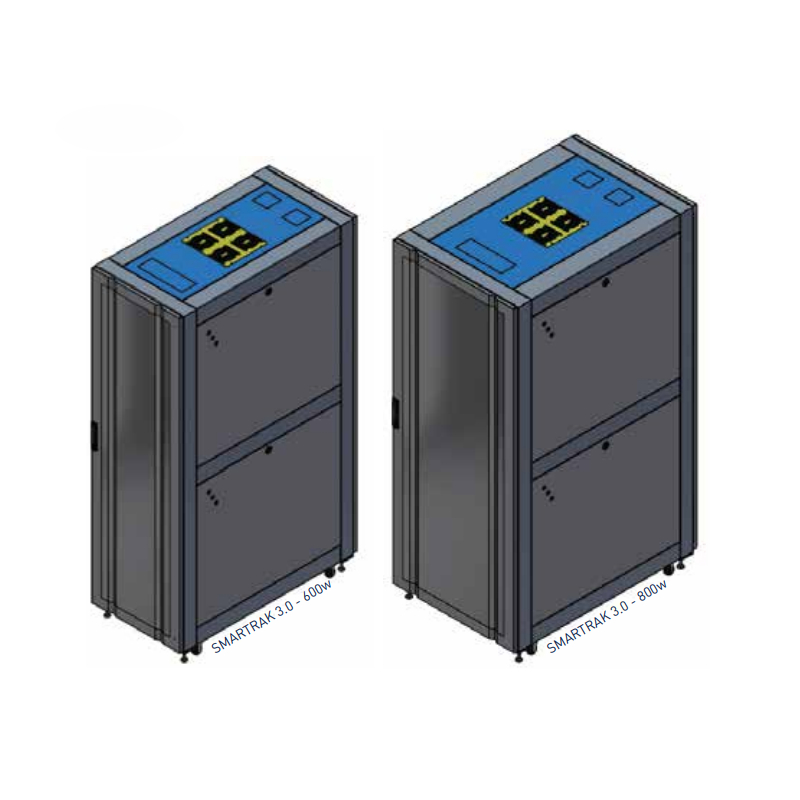

Rack Cabinet 50U D10000 SR50611BVA3-FAN SmartRak 3.0 Legrand

50U D1000 Rack Cabinet SR50610BVA3-FAN

50U 600 x 1000 Rack Cabinet SR50610BVA3-FAN belongs to Legrand's SmartRak 3.0 series, designed to optimize space and equipment management in the data center. With a size of 600mm x 1000mm and a height of 50U, the cabinet meets the 19” standard and supports the installation of many network devices and servers from different brands.

Sturdy structure made of SPCC cold-rolled steel, front and rear doors with 75% perforation increase air circulation. Integrated cooling fan system helps maintain stable temperature inside the cabinet. Flexible adjustable equipment mounting bars support cable management from above and below the cabinet.

The cabinet meets international safety and quality standards such as IEC 297-2, DIN 41494, EIA-310-D, RoHS, UL 60950-1, suitable for data centers, server rooms and telecommunication systems.

Specifications

• Size (WxDxH): 600mm x 1000mm x 2402mm
• Usable height: 50U
• Static load: 1500kg
• Material: SPCC cold-rolled steel, black powder coating (RAL 9005)
• Front & rear doors: 75% perforated, rotating handle lock
• Cable management: Supports wiring from top and bottom of cabinet
• Fan tray: Integrated cooling fan system
• Standards: IP20, IEC 297-2, DIN 41494, EIA-310-D, RoHS, UL 60950-1
• Equipment mounting bar: Flexible depth adjustment, U number marking from bottom up
• Equipment mounting hole: Standard 19” (ETSI, Metric)
• Security: Synchronous locking of front, rear and side panels

SmartRak 3.0 Ordering Information
