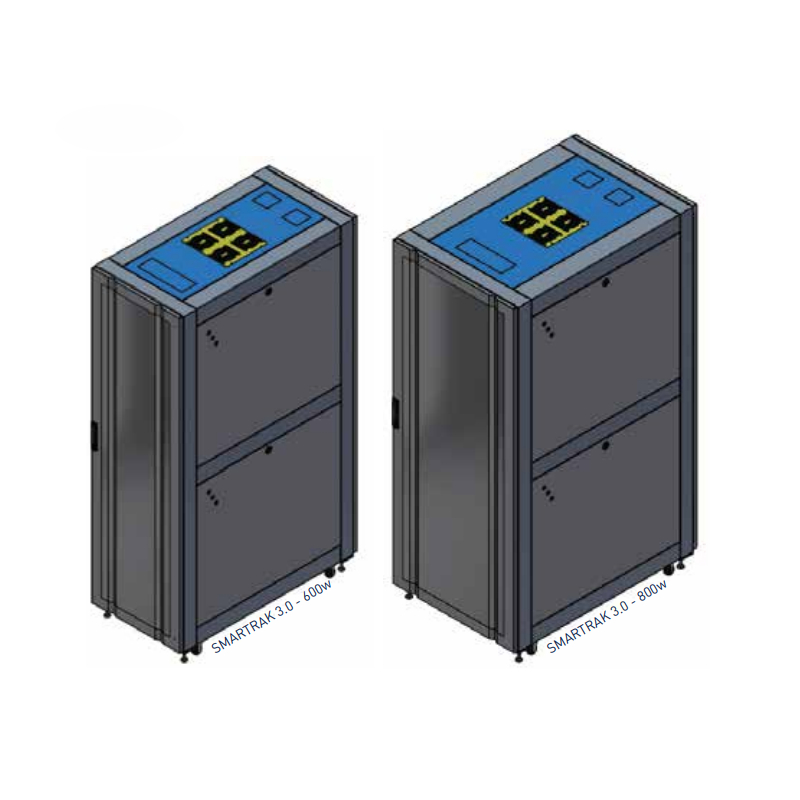

48U D600 Rack SR48860BVA3-FAN
48U D600 Rack SR48860BVA3-FAN belongs to Legrand's SmartRak 3.0 series, specially designed for data centers, network systems and servers. With a depth of 600mm, the cabinet is suitable for small and medium sized equipment, helping to save space while still ensuring high operating efficiency.
The cabinet has 75% perforated front and rear doors, supporting effective cooling, helping to increase air flow for the system. Synchronized rotating handle locks on the front door, rear door and side panels help to secure the equipment optimally.
The cabinet frame is made of SPCC cold-rolled steel, powder coated with RAL 9005 (black) for durability and corrosion resistance. Modular design, easy to install, transport and maintain. 19 inch standard mounting bar, adjustable depth to suit a variety of equipment.
Specifications
- Dimensions (WxDxH): 800mm x 600mm x 2313mm
- Usable height: 48U
- Static load: 1500kg
- Material: SPCC cold-rolled steel, RAL 9005 powder coating
- Front & rear doors: 75% perforated, rotary handle lock
- Cooling system: Built-in cooling fan
- Equipment mounting bar: Standard 19", flexible adjustment
- Cable management: Support top to bottom installation
- Standard: IP20, IEC 297-2, DIN 41494, EIA-310-D, RoHS, UL 60950-1
- Security: Synchronized locking of front, rear and side panels
SmartRak 3.0 Ordering Information
| (U) | 600 x 600 | 600 x 800 | 600 x 1000 | 600 x 1100 | 600 x 1200 | 800 x 600 | 800 x 800 | 800 x 1000 | 800 x 1100 | 800 x 1200 |
|---|
| 27U |
SR27660BVA3-FAN |
SR27680BVA3-FAN |
SR27610BVA3-FAN |
SR27611BVA3-FAN |
SR27612BVA3-FAN |
SR27860BVA3-FAN |
SR27880BVA3-FAN |
SR27810BVA3-FAN |
SR27811BVA3-FAN |
SR27812BVA3-FAN |
| 32U |
SR32660BVA3-FAN |
SR32680BVA3-FAN |
SR32610BVA3-FAN |
SR32611BVA3-FAN |
SR32612BVA3-FAN |
SR32860BVA3-FAN |
SR32880BVA3-FAN |
SR32810BVA3-FAN |
SR32811BVA3-FAN |
SR32812BVA3-FAN |
| 36U |
SR36660BVA3-FAN |
SR36680BVA3-FAN |
SR36610BVA3-FAN |
SR36611BVA3-FAN |
SR36612BVA3-FAN |
SR36860BVA3-FAN |
SR36880BVA3-FAN |
SR36810BVA3-FAN |
SR36811BVA3-FAN |
SR36812BVA3-FAN |
| 42U |
SR42660BVA3-FAN |
SR42680BVA3-FAN |
SR42610BVA3-FAN |
SR42611BVA3-FAN |
SR42612BVA3-FAN |
SR42860BVA3-FAN |
SR42880BVA3-FAN |
SR42810BVA3-FAN |
SR42811BVA3-FAN |
SR42812BVA3-FAN |
| 45U |
SR45660BVA3-FAN |
SR45680BVA3-FAN |
SR45610BVA3-FAN |
SR45611BVA3-FAN |
SR45612BVA3-FAN |
SR45860BVA3-FAN |
SR45880BVA3-FAN |
SR45810BVA3-FAN |
SR45811BVA3-FAN |
SR45812BVA3-FAN |
| 47U |
SR47660BVA3-FAN |
SR47680BVA3-FAN |
SR47610BVA3-FAN |
SR47611BVA3-FAN |
SR47612BVA3-FAN |
SR47860BVA3-FAN |
SR47880BVA3-FAN |
SR47810BVA3-FAN |
SR47811BVA3-FAN |
SR47812BVA3-FAN |
| 48U |
SR48660BVA3-FAN |
SR48680BVA3-FAN |
SR48610BVA3-FAN |
SR48611BVA3-FAN |
SR48612BVA3-FAN |
SR48860BVA3-FAN |
SR48880BVA3-FAN |
SR48810BVA3-FAN |
SR48811BVA3-FAN |
SR48812BVA3-FAN |
| 50U |
SR50660BVA3-FAN |
SR50680BVA3-FAN |
SR50610BVA3-FAN |
SR50611BVA3-FAN |
SR50612BVA3-FAN |
SR50860BVA3-FAN |
SR50880BVA3-FAN |
SR50810BVA3-FAN |
SR50811BVA3-FAN |
SR50812BVA3-FAN |
| 52U |
SR52660BVA3-FAN |
SR52680BVA3-FAN |
SR52610BVA3-FAN |
SR52611BVA3-FAN |
SR52612BVA3-FAN |
SR52860BVA3-FAN |
SR52880BVA3-FAN |
SR52810BVA3-FAN |
SR52811BVA3-FAN |
SR52812BVA3-FAN |
|
