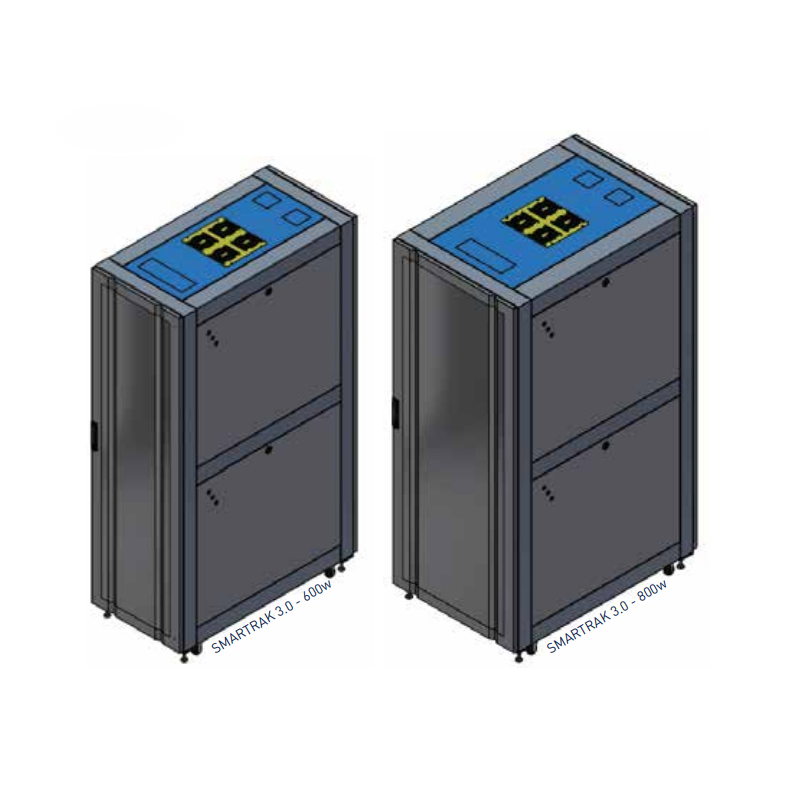

Rack Cabinet 48U D1200 SR48812BVA3-FAN SmartRak 3.0 Legrand

48U Rack Cabinet D1200 SR48812BVA3-FAN

The 48U Rack Cabinet D1200 SR48812BVA3-FAN belongs to Legrand's SmartRak 3.0 series, which is optimally designed for data centers and server systems that require good cable management and airflow. With a depth of 1200mm, the cabinet provides ample space for installing large equipment, while ensuring cooling performance thanks to the 75% perforated front and rear doors, which optimize air circulation.

The cabinet is made of SPCC cold-rolled steel, powder coated RAL 9005 (black), which is durable, anti-corrosive and ensures the safety of the equipment inside. Synchronized rotating handle locks for the front door, rear door and side panels help protect the equipment from unauthorized access.

With its modular design, SmartRak 3.0 makes installation, transportation and maintenance easier. The standard 19-inch mounting bar, with adjustable depth, can accommodate a wide range of equipment.

Specifications

• Dimensions (WxDxH): 800mm x 1200mm x 2313mm
• Usable height: 48U
• Static load: 1500kg
• Material: SPCC cold-rolled steel, RAL 9005 powder coating
• Front & rear doors: 75% perforated, rotary handle lock
• Cooling system: Integrated cooling fan
• Equipment mounting bar: Standard 19", flexible adjustment
• Cable management: Support top to bottom installation
• Standard: IP20, IEC 297-2, DIN 41494, EIA-310-D, RoHS, UL 60950-1
• Security: Synchronous locking of front, rear and side panels

SmartRak 3.0 Ordering Information
