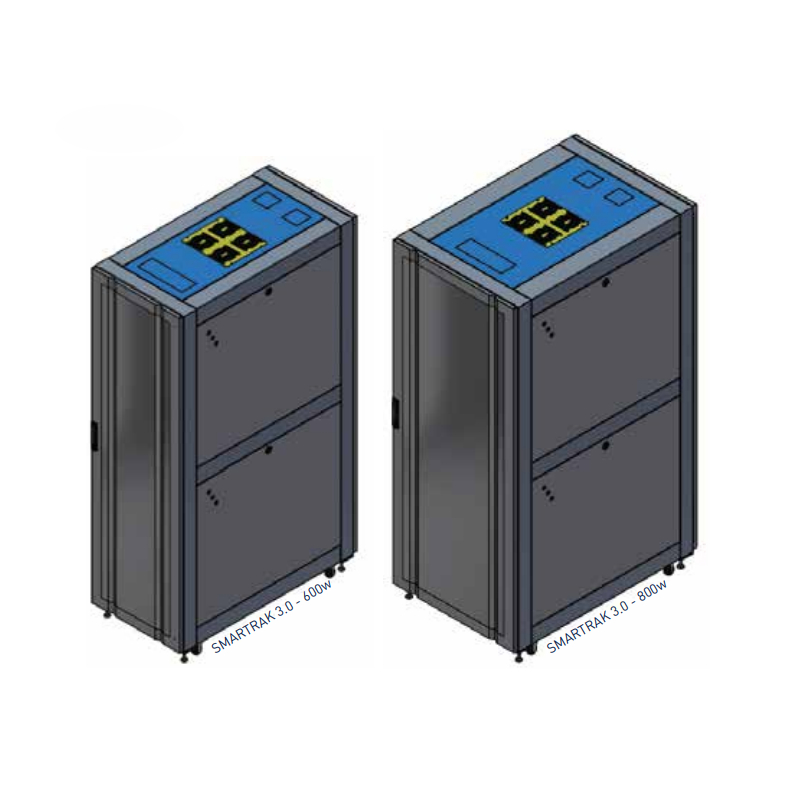

45U D600 Rack Cabinet SR45660BVA3-FAN
The SR45660BVA3-FAN rack cabinet with a depth of 600mm is a compact solution but still ensures high performance, suitable for security camera systems, telecommunications, and compact IT equipment.
Compact but sturdy design, with a load capacity of up to 1000kg, helps protect the device from external factors. The effective ventilation system helps maintain stable operating temperature, ensuring the life of the device.
Specifications
- Dimensions (WxDxH): 600 x 600 x 2268 mm
- Usable height: 45U
- Static load: 1000 kg
- Material: SPCC steel with RAL 9005 powder coating
- Front & rear doors: 75% perforated, security lock
- Cooling system: 2 standard cooling fans
- Standards: DIN 41494, UL 60950-1, IEC 297-2
SmartRak 3.0 Ordering Information
| (U) | 600 x 600 | 600 x 800 | 600 x 1000 | 600 x 1100 | 600 x 1200 | 800 x 600 | 800 x 800 | 800 x 1000 | 800 x 1100 |
800 x 1200
|
|---|
| 27U |
SR27660BVA3-FAN |
SR27680BVA3-FAN |
SR27610BVA3-FAN |
SR27611BVA3-FAN |
SR27612BVA3-FAN |
SR27860BVA3-FAN |
SR27880BVA3-FAN |
SR27810BVA3-FAN |
SR27811BVA3-FAN |
SR27812BVA3-FAN |
| 32U |
SR32660BVA3-FAN |
SR32680BVA3-FAN |
SR32610BVA3-FAN |
SR32611BVA3-FAN |
SR32612BVA3-FAN |
SR32860BVA3-FAN |
SR32880BVA3-FAN |
SR32810BVA3-FAN |
SR32811BVA3-FAN |
SR32812BVA3-FAN |
| 36U |
SR36660BVA3-FAN |
SR36680BVA3-FAN |
SR36610BVA3-FAN |
SR36611BVA3-FAN |
SR36612BVA3-FAN |
SR36860BVA3-FAN |
SR36880BVA3-FAN |
SR36810BVA3-FAN |
SR36811BVA3-FAN |
SR36812BVA3-FAN |
| 42U |
SR42660BVA3-FAN |
SR42680BVA3-FAN |
SR42610BVA3-FAN |
SR42611BVA3-FAN |
SR42612BVA3-FAN |
SR42860BVA3-FAN |
SR42880BVA3-FAN |
SR42810BVA3-FAN |
SR42811BVA3-FAN |
SR42812BVA3-FAN |
| 45U |
SR45660BVA3-FAN |
SR45680BVA3-FAN |
SR45610BVA3-FAN |
SR45611BVA3-FAN |
SR45612BVA3-FAN |
SR45860BVA3-FAN |
SR45880BVA3-FAN |
SR45810BVA3-FAN |
SR45811BVA3-FAN |
SR45812BVA3-FAN |
| 47U |
SR47660BVA3-FAN |
SR47680BVA3-FAN |
SR47610BVA3-FAN |
SR47611BVA3-FAN |
SR47612BVA3-FAN |
SR47860BVA3-FAN |
SR47880BVA3-FAN |
SR47810BVA3-FAN |
SR47811BVA3-FAN |
SR47812BVA3-FAN |
| 48U |
SR48660BVA3-FAN |
SR48680BVA3-FAN |
SR48610BVA3-FAN |
SR48611BVA3-FAN |
SR48612BVA3-FAN |
SR48860BVA3-FAN |
SR48880BVA3-FAN |
SR48810BVA3-FAN |
SR48811BVA3-FAN |
SR48812BVA3-FAN |
| 50U |
SR50660BVA3-FAN |
SR50680BVA3-FAN |
SR50610BVA3-FAN |
SR50611BVA3-FAN |
SR50612BVA3-FAN |
SR50860BVA3-FAN |
SR50880BVA3-FAN |
SR50810BVA3-FAN |
SR50811BVA3-FAN |
SR50812BVA3-FAN |
| 52U |
SR52660BVA3-FAN |
SR52680BVA3-FAN |
SR52610BVA3-FAN |
SR52611BVA3-FAN |
SR52612BVA3-FAN |
SR52860BVA3-FAN |
SR52880BVA3-FAN |
SR52810BVA3-FAN |
SR52811BVA3-FAN |
SR52812BVA3-FAN |
|
