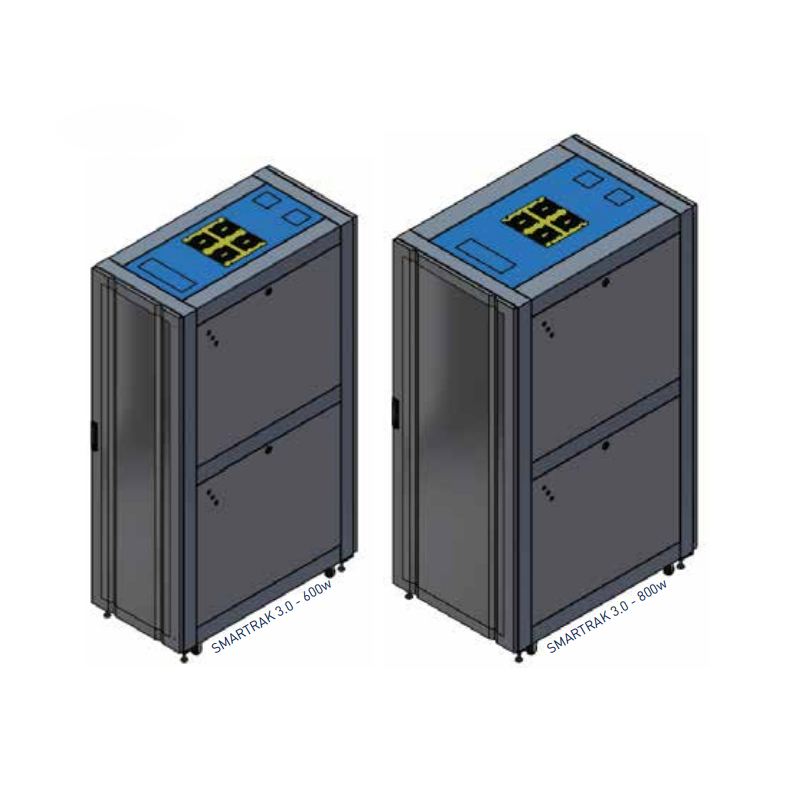

32U D1200 Rack Cabinet SR32812BVA3-FAN
The SR32812BVA3-FAN Rack Cabinet belongs to Legrand's SmartRak 3.0 series, providing optimal solutions for server systems, network equipment and data centers. With a height of 32U, a width of 800mm, and a depth of 1200mm, the cabinet has a spacious space, supporting the installation of large-capacity equipment, suitable for systems that require cable management and optimal airflow.
Sturdy design & optimized airflow
- Made from 1.2 - 2.0mm thick SPCC steel, good load-bearing capacity.
- The front and rear doors are honeycomb mesh to increase air circulation.
- The standard 4-fan cooling system effectively reduces heat.
- Cable management bar helps organize the wiring system neatly.
Specifications
- Dimensions (WxDxH): 800 x 1200 x 1580 mm
- Usable height: 32U
- Maximum load: 1200 kg
- Cooling system: 4 standard fans
- Material: SPCC steel 1.2 – 2.0mm, powder coated RAL 9005
- Door: Front & rear 75% honeycomb mesh
- Standard: UL 60950-1, IEC 297-2, DIN 41494
SmartRak 3.0 Ordering Information
| (U) | 600 x 600 | 600 x 800 | 600 x 1000 | 600 x 1100 | 600 x 1200 | 800 x 600 | 800 x 800 | 800 x 1000 | 800 x 1100 |
800 x 1200
|
|---|
| 27U |
SR27660BVA3-FAN |
SR27680BVA3-FAN |
SR27610BVA3-FAN |
SR27611BVA3-FAN |
SR27612BVA3-FAN |
SR27860BVA3-FAN |
SR27880BVA3-FAN |
SR27810BVA3-FAN |
SR27811BVA3-FAN |
SR27812BVA3-FAN |
| 32U |
SR32660BVA3-FAN |
SR32680BVA3-FAN |
SR32610BVA3-FAN |
SR32611BVA3-FAN |
SR32612BVA3-FAN |
SR32860BVA3-FAN |
SR32880BVA3-FAN |
SR32810BVA3-FAN |
SR32811BVA3-FAN |
SR32812BVA3-FAN |
| 36U |
SR36660BVA3-FAN |
SR36680BVA3-FAN |
SR36610BVA3-FAN |
SR36611BVA3-FAN |
SR36612BVA3-FAN |
SR36860BVA3-FAN |
SR36880BVA3-FAN |
SR36810BVA3-FAN |
SR36811BVA3-FAN |
SR36812BVA3-FAN |
| 42U |
SR42660BVA3-FAN |
SR42680BVA3-FAN |
SR42610BVA3-FAN |
SR42611BVA3-FAN |
SR42612BVA3-FAN |
SR42860BVA3-FAN |
SR42880BVA3-FAN |
SR42810BVA3-FAN |
SR42811BVA3-FAN |
SR42812BVA3-FAN |
| 45U |
SR45660BVA3-FAN |
SR45680BVA3-FAN |
SR45610BVA3-FAN |
SR45611BVA3-FAN |
SR45612BVA3-FAN |
SR45860BVA3-FAN |
SR45880BVA3-FAN |
SR45810BVA3-FAN |
SR45811BVA3-FAN |
SR45812BVA3-FAN |
| 47U |
SR47660BVA3-FAN |
SR47680BVA3-FAN |
SR47610BVA3-FAN |
SR47611BVA3-FAN |
SR47612BVA3-FAN |
SR47860BVA3-FAN |
SR47880BVA3-FAN |
SR47810BVA3-FAN |
SR47811BVA3-FAN |
SR47812BVA3-FAN |
| 48U |
SR48660BVA3-FAN |
SR48680BVA3-FAN |
SR48610BVA3-FAN |
SR48611BVA3-FAN |
SR48612BVA3-FAN |
SR48860BVA3-FAN |
SR48880BVA3-FAN |
SR48810BVA3-FAN |
SR48811BVA3-FAN |
SR48812BVA3-FAN |
| 50U |
SR50660BVA3-FAN |
SR50680BVA3-FAN |
SR50610BVA3-FAN |
SR50611BVA3-FAN |
SR50612BVA3-FAN |
SR50860BVA3-FAN |
SR50880BVA3-FAN |
SR50810BVA3-FAN |
SR50811BVA3-FAN |
SR50812BVA3-FAN |
| 52U |
SR52660BVA3-FAN |
SR52680BVA3-FAN |
SR52610BVA3-FAN |
SR52611BVA3-FAN |
SR52612BVA3-FAN |
SR52860BVA3-FAN |
SR52880BVA3-FAN |
SR52810BVA3-FAN |
SR52811BVA3-FAN |
SR52812BVA3-FAN |
|
