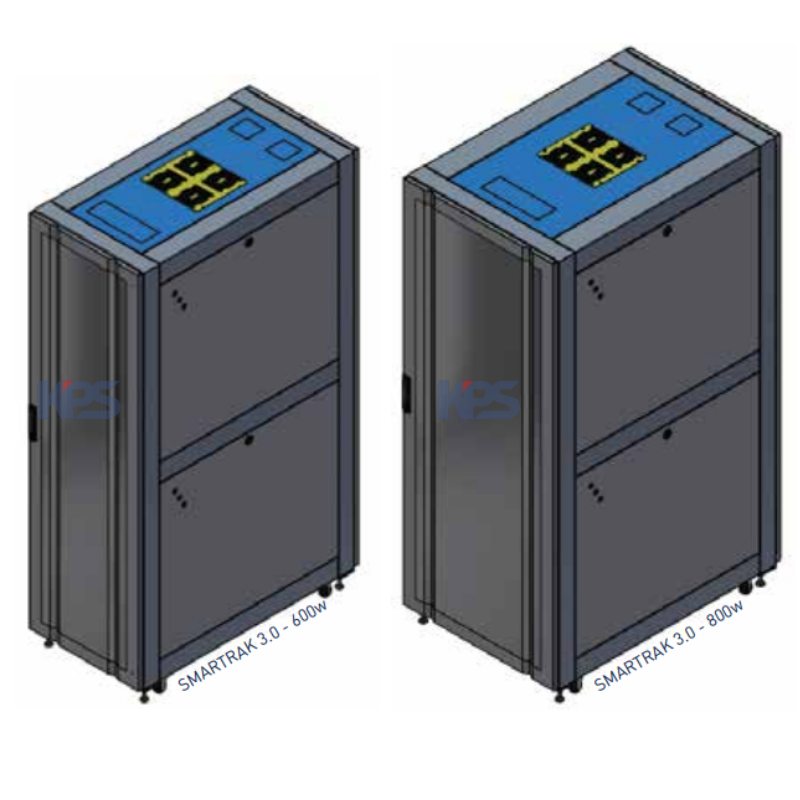

27U D1000 Rack Cabinet SR27810BVA3-FAN
The SR27810BVA3-FAN is a rack cabinet from Legrand's SmartRak® 3.0 series, designed for data centers, server rooms, and enterprise network infrastructure.
This product supports multiple 19” / ETSI / Metric standards, allowing the installation of equipment from various manufacturers in the same cabinet. With a 27U (800 x 1000 mm) size, the cabinet is suitable for systems requiring moderate depth while ensuring efficient cable routing and airflow.
The design supports cable routing from both the top and bottom, combined with an integrated fan tray and 75% perforated doors, optimizing airflow and ensuring stable long-term equipment operation.
Key Features
- Supports multiple 19” ETSI and Metric standards
- 800 x 1000 mm size suitable for servers and medium-depth equipment
- Top & bottom cable routing design for high-density systems
- 75% perforated front door, 75% perforated rear door for optimized airflow
- Integrated fan tray for active cooling
- Robust steel frame, load capacity up to 1500kg
- Side Removable cover, easy to transport and maintain
- 120° opening door, convenient operation
- Synchronized locking system, increased security
Technical Specifications
- Model: SR27810BVA3-FAN
- Product Line: SmartRak 3.0
- Height: 27U (~1380 mm)
- Dimensions (W x D): 800 x 1000 mm
- Static Load Capacity: 1500 kg
- Material: SPCC Cold-Rolled Steel
- Color: Black RAL 9005
- Protection Class: IP20
- Grounding: Fully earthed
- Support Standards: 19” / ETSI / Metric
- Front Door: 75% Perforated
- Rear Door: 2 x 75% Perforated Doors
- Door Opening Angle: 120°
- Mounting Rails: 4 x 19” rails, adjustable depth
- Front Airflow Distance: 105° mm
- Front clearance: 80 mm
- Cooling system: Integrated fan tray
- Standards: IEC, DIN, EIA-310-D, EN 60950
- Certifications: RoHS, UL
SmartRak 3.0 Ordering Information
| (U) | 600 x 600 | 600 x 800 | 600 x 1000 | 600 x 1100 | 600 x 1200 | 800 x 600 | 800 x 800 | 800 x 1000 | 800 x 1100 |
800 x 1200
|
|---|
| 27U |
SR27660BVA3-FAN |
SR27680BVA3-FAN |
SR27610BVA3-FAN |
SR27611BVA3-FAN |
SR27612BVA3-FAN |
SR27860BVA3-FAN |
SR27880BVA3-FAN |
SR27810BVA3-FAN |
SR27811BVA3-FAN |
SR27812BVA3-FAN |
| 32U |
SR32660BVA3-FAN |
SR32680BVA3-FAN |
SR32610BVA3-FAN |
SR32611BVA3-FAN |
SR32612BVA3-FAN |
SR32860BVA3-FAN |
SR32880BVA3-FAN |
SR32810BVA3-FAN |
SR32811BVA3-FAN |
SR32812BVA3-FAN |
| 36U |
SR36660BVA3-FAN |
SR36680BVA3-FAN |
SR36610BVA3-FAN |
SR36611BVA3-FAN |
SR36612BVA3-FAN |
SR36860BVA3-FAN |
SR36880BVA3-FAN |
SR36810BVA3-FAN |
SR36811BVA3-FAN |
SR36812BVA3-FAN |
| 42U |
SR42660BVA3-FAN |
SR42680BVA3-FAN |
SR42610BVA3-FAN |
SR42611BVA3-FAN |
SR42612BVA3-FAN |
SR42860BVA3-FAN |
SR42880BVA3-FAN |
SR42810BVA3-FAN |
SR42811BVA3-FAN |
SR42812BVA3-FAN |
| 45U |
SR45660BVA3-FAN |
SR45680BVA3-FAN |
SR45610BVA3-FAN |
SR45611BVA3-FAN |
SR45612BVA3-FAN |
SR45860BVA3-FAN |
SR45880BVA3-FAN |
SR45810BVA3-FAN |
SR45811BVA3-FAN |
SR45812BVA3-FAN |
| 47U |
SR47660BVA3-FAN |
SR47680BVA3-FAN |
SR47610BVA3-FAN |
SR47611BVA3-FAN |
SR47612BVA3-FAN |
SR47860BVA3-FAN |
SR47880BVA3-FAN |
SR47810BVA3-FAN |
SR47811BVA3-FAN |
SR47812BVA3-FAN |
| 48U |
SR48660BVA3-FAN |
SR48680BVA3-FAN |
SR48610BVA3-FAN |
SR48611BVA3-FAN |
SR48612BVA3-FAN |
SR48860BVA3-FAN |
SR48880BVA3-FAN |
SR48810BVA3-FAN |
SR48811BVA3-FAN |
SR48812BVA3-FAN |
| 50U |
SR50660BVA3-FAN |
SR50680BVA3-FAN |
SR50610BVA3-FAN |
SR50611BVA3-FAN |
SR50612BVA3-FAN |
SR50860BVA3-FAN |
SR50880BVA3-FAN |
SR50810BVA3-FAN |
SR50811BVA3-FAN |
SR50812BVA3-FAN |
| 52U |
SR52660BVA3-FAN |
SR52680BVA3-FAN |
SR52610BVA3-FAN |
SR52611BVA3-FAN |
SR52612BVA3-FAN |
SR52860BVA3-FAN |
SR52880BVA3-FAN |
SR52810BVA3-FAN |
SR52811BVA3-FAN |
SR52812BVA3-FAN |
|
