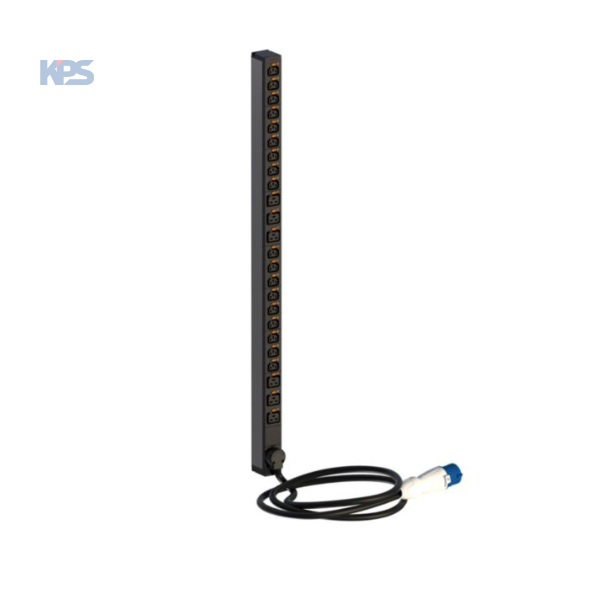

Zero-U 646960 Legrand Power Distribution Unit (PDU)

Zero-U 646960 Legrand Power Distribution Unit (PDU)

The Legrand 646960 Zero-U Power Distribution Unit (PDU) is a dedicated device for supplying power to IT systems in 19" racks. This is a single-phase (1P) PDU with an optimal design for data centers, network systems and servers.

Outstanding features

• 1 phase - 16A
• 18 C13 outlets + 6 C19 outlets, with cord locking system
• Max power 3,7kW
• 3 m power supply cord with IEC 60309 16A plug

Specifications

• Model: Legrand 646109
• Mount size: 987 mm
• Number of phases: 1
• Number of sockets with next address: 24
• Number of C13 sockets: 18
• Number of C19 sockets: 6
• RJ45 sockets number: 0
• USB socket number: 0
• Frequency: 50-60 Hz
• Maximum performance: No topic
• Current: 16 A
• RAL number: 9017
• Storage temperature: -20 to 70 °C
• Operating temperature: -5 to 60 °C
• Length: 975 mm
• Width: 44.3 mm
• Depth: 59.9 mm
• Device terminal capacity: 1.5-6 mm²
• Max. input cable diameter: 19 mm
• MCB quantity: 0
• Protection level (IP): IP20
• Colour: Black
• Rated current: No point
• Operating voltage: 230 V AC
