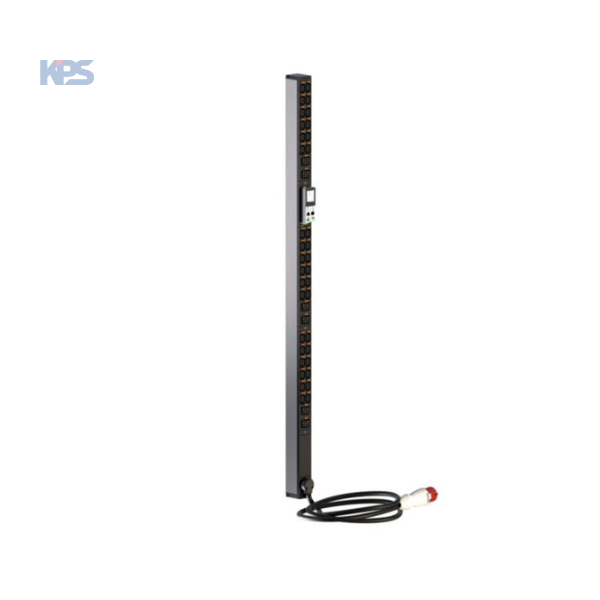

Intelligent Power Distribution Unit (PDU) 646111
- Product Code: 646111
- Product Line: PDU
- Brand: Legrand
- Warranty: ** months
Intelligent Power Distribution Unit (PDU) 646111
- 3 phase - 16A - Max power 11,1 kW
- 36 High Density C13 outlets + 6 C19 outlets, with cord locking system
- Metering at inlet and circuit level with +/ - 1% accuracy (Voltage, Current, Active Power, Apparent Power, Energy, Power Factor)
- Supplied with a hot swappable full IP controller (NODE) with LCD screen to manage and view information locally, and with a Ethernet port for connection to LAN and remote control.
- 3 m power supply cord with IEC 60309 16A plug
Specifications
Mounting dimension (standardised): 1362 mm
Mounting direction: Vertical
Electrical connection: Connection cable with plug
Type of electric connection: CEE 16 A
Number of phases: 3
Cable length: 3 m
Number of miniature circuit breakers (MCB): 0
Number of socket outlets:
-
With earth pin: 42
-
C13: 36
-
C19: 6
-
C20: 0
-
RJ45: 2
-
USB: 0
Dimensions:
-
Length: 1350 mm
-
Width: 52 mm
-
Depth: 73.4 mm
Supply voltage: 415 V AC
Current: 16 A
Frequency: 50-60 Hz
Degree of protection (IP): IP40
Colour: Black (RAL 9017)
