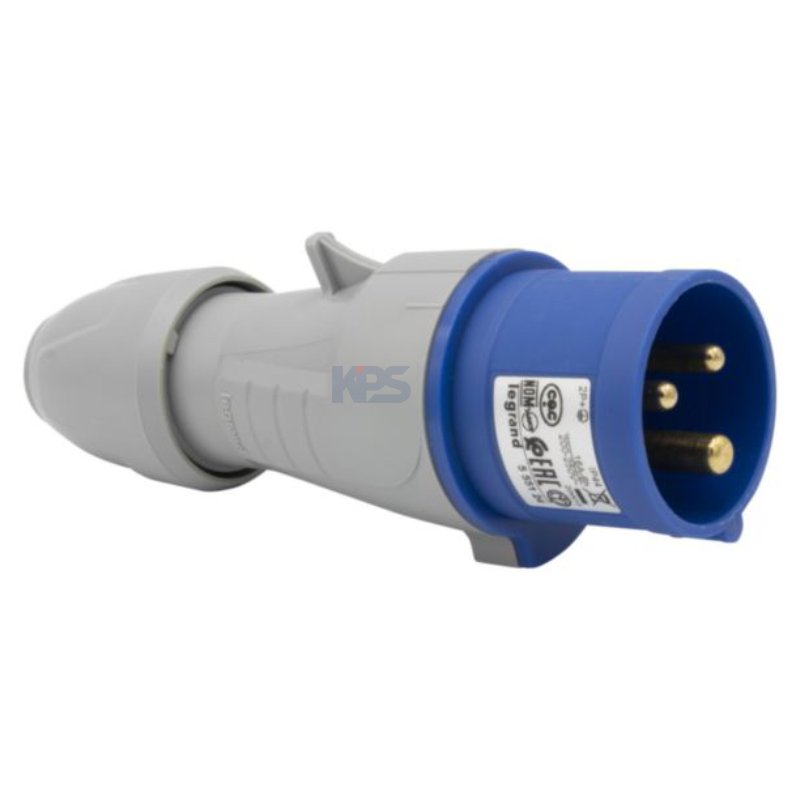

Legrand 555124 16A 2P+E IP44 Tempra Pro Plug

Legrand 555124 Industrial Plug

The Legrand P17 Tempra Pro 555124 plug is designed for environments with high humidity, dust, and requiring stable electrical connections, such as construction sites, factories, or technical areas.

The product uses the 2P+E – 16A – 200/250V standard, ensuring safe power supply for mobile electrical equipment. The IP44 design provides splash and dust protection, making it suitable for semi-outdoor use.

A key feature is the screwless cable clamp and cap closing mechanism, allowing for quick installation, saving construction time and reducing connection errors.

Key Features

• 2P+E standard (1 phase + ground) - ensures electrical safety
• 16A rated current - suitable for mobile devices
• 200-250V AC voltage - common standard
• IP44 - splashproof and dustproof
• Straight plug design - easy to operate
• Screwless cable clamp - quick and convenient installation
• Gland nut cable input - securely holds cables
• RAL 5005 color - IEC standard identification
• EN 60309-2 standard - compatible with industrial systems

Technical Specifications

• Model: 555124
• Product line: P17 Tempra Pro
• Device type: Industrial plug
• Rated current: 16A
• Voltage: 200–250V AC
• Number of poles: 2P+E (3 poles)
• Frequency: 50/60Hz
• Socket standard: EN 60309-2
• Grounding pin position: 6 o'clock
• Protection rating: IP44
• Connection type: Screw terminal
• Installation direction: Straight
• Cable input: Gland nut
• Color: Blue (RAL 5005)

Datasheet
