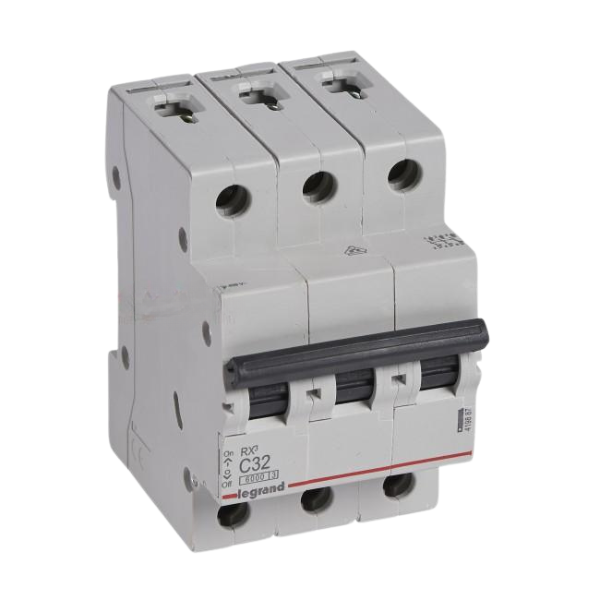

Legrand MCB 419887B 3P 32A 6kA

Legrand MCB 419887B 3P 32A 6kA

The Legrand MCB 419887B 3P 32A 6kA is a circuit protection device designed by Legrand to safeguard electrical systems against overloads and short circuits.

Key Features

• Rated current 32A:
  Suitable for medium to large residential systems such as multi-room apartments or standalone houses, as well as light industrial applications including small offices, workshops, or commercial spaces.

• 3 poles (3P):
  Supports three-phase electrical systems, ideal for applications that require three-phase protection such as industrial machinery or three-phase equipment.

• Short-circuit breaking capacity 6kA:
  Provides reliable protection by safely disconnecting the circuit when fault currents up to 6kA occur, ensuring safety for both users and equipment.

• Compact and durable design:
  With its compact size, this MCB can be easily installed in electrical distribution boards or panels without taking up much space.

• High durability and reliability:
  Designed and manufactured by Legrand for long-term operation, ensuring consistent performance and reliability over time.

Technical Specifications

• Product code: 419887B

• Rated current (In): 32A

• Rated voltage (Un): 400V

• Installation depth: 44 mm

• Tripping curve: C

• Number of poles: 3

• Rated insulation voltage (Ui): 400V

• Rated impulse withstand voltage (Uimp): 4kV

• Rated short-circuit capacity (Icn) according to EN 60898:

  • At 230V: 10kA

  • At 400V: 6kA

• Rated ultimate short-circuit capacity (Icu) according to IEC 60947-2:

  • At 230V: 10kA

  • At 400V: 6kA

• Voltage type: AC

• Frequency: 50–60Hz

• Current limitation class: 3

• Pollution degree: 2

• Protection rating (IP): IP20

• Dimensions (H × W × D): 88.8 × 53.4 × 77.3 mm

• Impact resistance (IK): IK04

• Storage temperature: -25°C to +60°C

• Color: Grey (RAL 7035)
