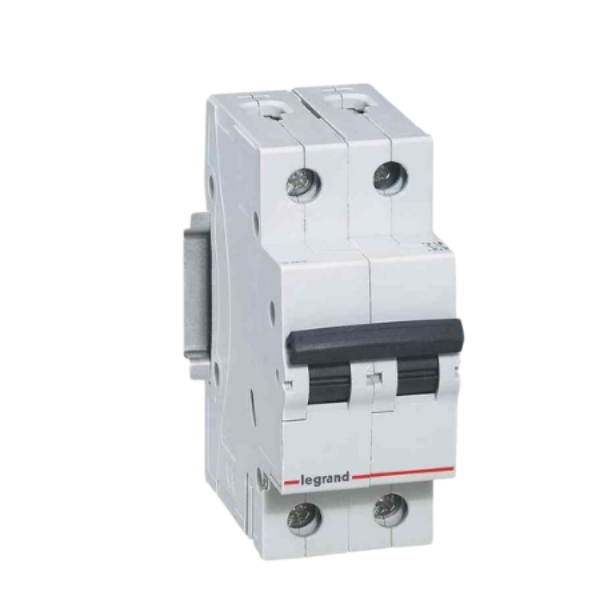

Legrand MCB 419875B 2P 25A 6kA

Legrand MCB 419875B 2P 25A 6kA

The Legrand MCB 419875B 2P 25A 6kA is a circuit protection device with a rated current of 25A and a breaking capacity of up to 6kA. Designed with 2 poles (2P), this MCB protects electrical systems from overloads and short circuits, making it suitable for residential and commercial applications that require high reliability.

Technical Specifications

• Product code: 419875B

• Rated current (In): 25A

• Rated voltage (Ue): 230/440V

• Built-in depth: 44 mm

• Trip curve: C

• Number of poles: 2

• Rated insulation voltage (Ui): 400V

• Rated impulse withstand voltage (Uimp): 4kV

• Rated short-circuit breaking capacity: 6kA (EN 60898), Icu 6kA (IEC 60947-2 at 230V)

• Voltage type: AC

• Frequency: 50–60 Hz

• Current limitation class: 3

• Pollution degree: 2

• Protection degree (IP): IP20

• Dimensions (H x W x D): 88.8 × 36.4 × 77.3 mm

• Impact resistance (IK): IK04

• Storage temperature: –25°C to 60°C

• Color: Grey (RAL 7035)
