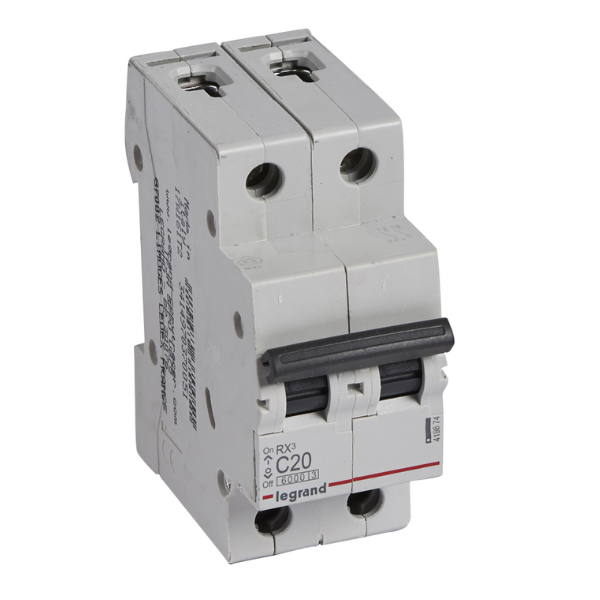

Legrand MCB 419874B 2P 20A 6kA

Legrand MCB 419874B 2P 20A 6kA

The Legrand MCB 419874B 2P 20A 6kA is a high-quality circuit protection device from the renowned brand Legrand, offering reliable protection against overloads and short circuits. With a rated current of 20A and a breaking capacity of 6kA, this 2-pole (2P) MCB is suitable for both residential and commercial electrical systems that require dependable safety performance.

Operating at a rated voltage of 230V, it can also be used in three-phase electrical systems with voltages up to 400V.

Technical Specifications

• Product code: 419874B

• Rated current (In): 20A

• Rated voltage (Ue): 230/440V

• Built-in depth: 44 mm

• Trip curve: C

• Number of poles: 2

• Rated insulation voltage (Ui): 400V

• Rated impulse withstand voltage (Uimp): 4kV

• Rated short-circuit breaking capacity: 6kA (EN 60898), Icu 6kA (IEC 60947-2 at 230V)

• Voltage type: AC

• Frequency: 50–60 Hz

• Current limitation class: 3

• Pollution degree: 2

• Protection degree (IP): IP20

• Dimensions (H x W x D): 88.8 × 36.4 × 77.3 mm

• Impact resistance (IK): IK04

• Storage temperature: –25°C to 60°C

• Color: Grey (RAL 7035)
