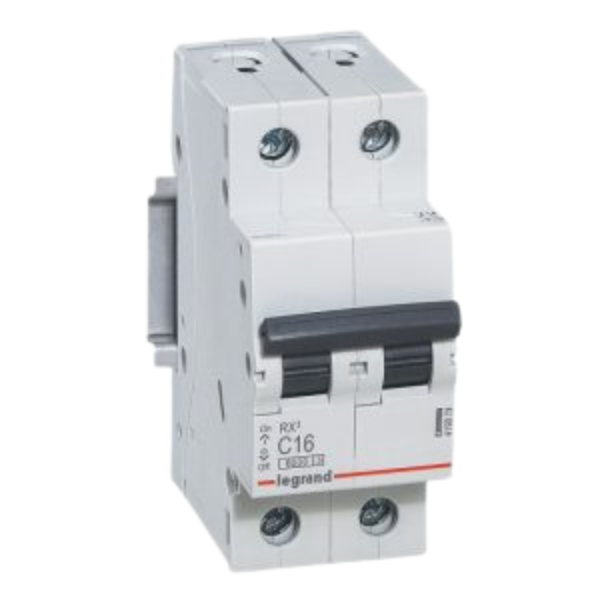

Legrand MCB 419873B 2P 16A 6kA

Legrand MCB 419873B 2P 16A 6kA

The Legrand MCB 419873B 2P 16A 6kA is a high-quality circuit protection device from the renowned brand Legrand. Designed with 2 poles (2P), a rated current of 16A, and a breaking capacity of 6kA, this MCB provides reliable protection for electrical circuits against overloads and short circuits. Its durable housing is made from high-grade plastic with excellent insulation, heat resistance, and impact strength, making it ideal for residential and light industrial applications.

Technical Specifications

• Product code: 419873B

• Rated current (In): 16A

• Rated voltage (Ue): 230/440V

• Built-in depth: 44 mm

• Trip curve: C

• Number of poles: 2

• Rated insulation voltage (Ui): 400V

• Rated impulse withstand voltage (Uimp): 4kV

• Rated short-circuit breaking capacity: 6kA (EN 60898), Icu 6kA (IEC 60947-2 at 230V)

• Voltage type: AC

• Frequency: 50–60 Hz

• Current limitation class: 3

• Pollution degree: 2

• Protection degree (IP): IP20

• Dimensions (H x W x D): 88.8 × 36.4 × 77.3 mm

• Impact resistance (IK): IK04

• Storage temperature: –25°C to 60°C

• Color: Grey (RAL 7035)
