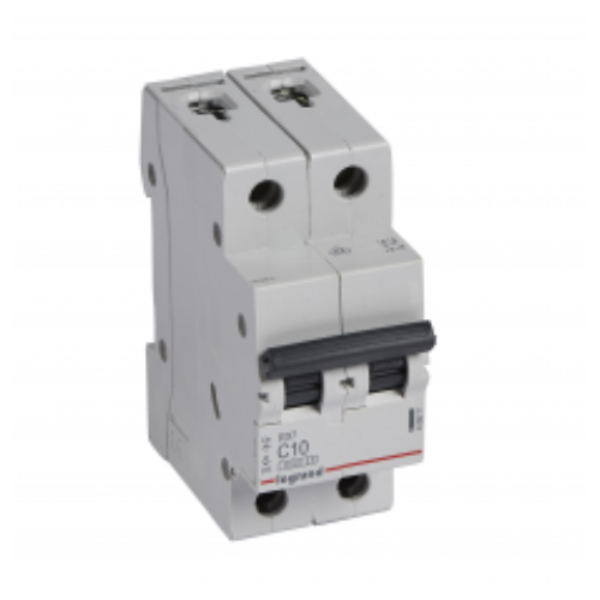

Aptomat MCB Legrand 419871B 2P 10A 6kA

Aptomat MCB Legrand 419871B 2P 10A 6kA

The Legrand 419871B 2P 10A 6kA Miniature Circuit Breaker (MCB) is a high-quality electrical protection device from the renowned brand Legrand. Designed with 2 poles (2P), a rated current of 10A, and a breaking capacity of 6kA, this MCB ensures effective protection for electrical circuits against overloads, short circuits, and equipment faults.

The device features a durable, heat- and impact-resistant plastic housing that provides excellent electrical insulation. It operates at a rated voltage of 230V, and can also be used in three-phase systems up to 400V, making it suitable for both residential and light industrial applications.

Technical Specifications

• Product Code: 419871B

• Rated Current: 10 A

• Rated Voltage: 230/440 V

• Built-in Depth: 44 mm

• Tripping Characteristic: C

• Number of Poles: 2

• Rated Insulation Voltage (Ui): 400 V

• Rated Impulse Withstand Voltage (Uimp): 4 kV

• Rated Short-Circuit Breaking Capacity: 6 kA (EN 60898), Icu 6 kA (IEC 60947-2 at 230 V)

• Voltage Type: AC

• Frequency: 50–60 Hz

• Current Limiting Class: 3

• Pollution Degree: 2

• Protection Level (IP): IP20

• Dimensions (H × W × D): 88.8 × 36.4 × 77.3 mm

• Impact Resistance (IK): IK04

• Storage Temperature: -25°C to 60°C

• Color: Grey (RAL 7035)
