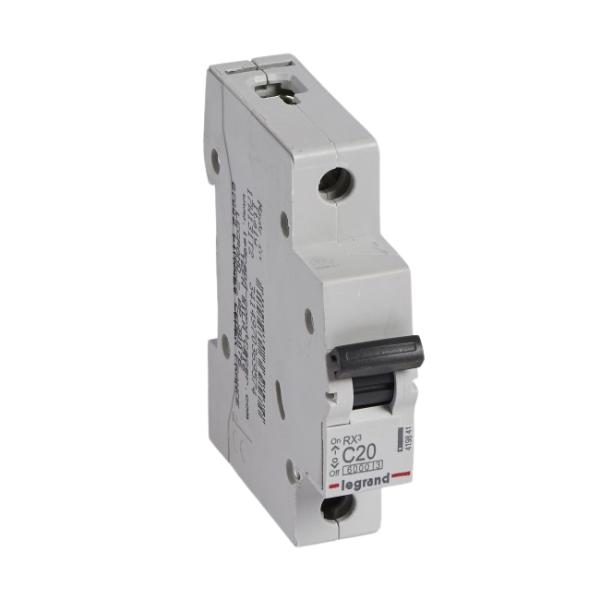

Legrand MCB 419841B 1P 20A 6kA

Legrand MCB 419841B 1P 20A 6kA

The Legrand MCB 419841B 1P 20A 6kA is a miniature circuit breaker (MCB) designed to automatically disconnect electrical circuits in case of overloads or short circuits, protecting electrical equipment and preventing fire hazards. With a rated current of 20A, it is suitable for residential and commercial electrical systems that require moderate to high current capacity.

Key Features

• Rated Voltage: Operates at 230V, and can also be used in higher voltage applications up to 400V for three-phase systems.

• High Breaking Capacity: Provides a short-circuit breaking capacity of 6kA, ensuring fast and reliable disconnection in case of electrical faults.

• Premium Quality: Manufactured under Legrand’s high-quality standards, guaranteeing excellent performance and long-lasting durability.

• Modern and Compact Design: Sleek and durable construction, suitable for various interior environments; easy to install and convenient to operate.

Technical Specifications

• Product Code: 419841B

• Rated Current: 20 A

• Rated Voltage: 230/440 V

• Installation Depth: 44 mm

• Tripping Characteristic: Type C

• Number of Poles: 1

• Rated Insulation Voltage (Ui): 400 V

• Rated Impulse Withstand Voltage (Uimp): 4 kV

• Rated Short-Circuit Breaking Capacity (Icn) at 230 V (EN 60898): 6 kA

• Voltage Type: AC

• Frequency: 50–60 Hz

• Current Limiting Class: 3

• Pollution Degree: 2

• Protection Rating (IP): IP20

• Dimensions (H x W x D): 88.8 x 17.8 x 77.3 mm

• Impact Resistance (IK): IK04

• Storage Temperature: -25°C to 60°C

• Color: Grey (RAL 7035)

• Standard: IEC 60898-1
