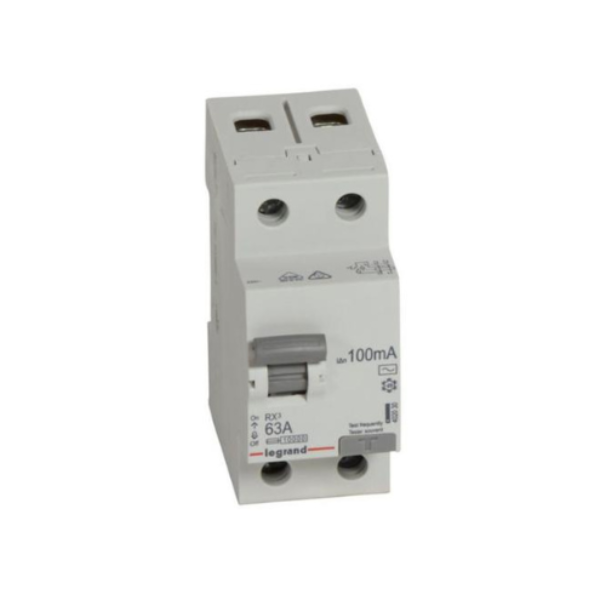

Legrand 402030 2P 63A 100mA RCCB

Legrand 402030 2P 63A 100mA RCCB (Residual Current Circuit Breaker)

The Legrand 402030 2P 63A 100mA RCCB is a residual current circuit breaker designed to protect people and electrical systems from electrical leakage. It automatically disconnects the circuit when a leakage current exceeding 100mA is detected, helping prevent electric shocks and electrical fires.

Key Features

• Rated current 63A: With a rated current of up to 63A, this device is suitable for protecting high-power electrical equipment such as air conditioners, pumps, and small industrial machines.

• Residual current sensitivity 100mA: Provides safety by disconnecting power when the leakage current exceeds 100mA, minimizing the risk of electric shock and equipment damage.

• 2-pole design (2P): Offers protection for both phase and neutral wires, ensuring safety for single-phase electrical systems.

• Leakage detection: Enhances user safety by detecting and immediately disconnecting the circuit in case of leakage, preventing electric shock hazards.

• Compact and easy installation: DIN rail mounting for quick integration into standard electrical panels and residential systems.

Technical Specifications

• Product code: 402030

• Type: MCCB-2P

• Rated voltage (Un): 230 V

• Rated current (In): 63 A

• Rated residual current (IΔn): 0.1 A (100 mA)

• Insulation voltage (Ui): 250 V

• Impulse withstand voltage (Uimp): 4 kV

• Number of poles: 2

• Mounting method: DIN rail

• Type of leakage current: AC

• Short-time withstand current (Icw): 10 kA

• Current increment: 0.25 kA

• Voltage type: AC

• Frequency: 50 Hz

• Protection rating (IP): IP20

• Module width: 2

• Built-in depth: 44 mm

• Operating temperature: -25°C to +60°C

• Pollution degree: 2

• RAL color (approx.): 7035

• Dimensions (H x W x D): 88.9 x 35.6 x 77.8 mm

• Impact resistance (IK): IK04

• Storage temperature: -40°C to +70°C

• Color: Grey
