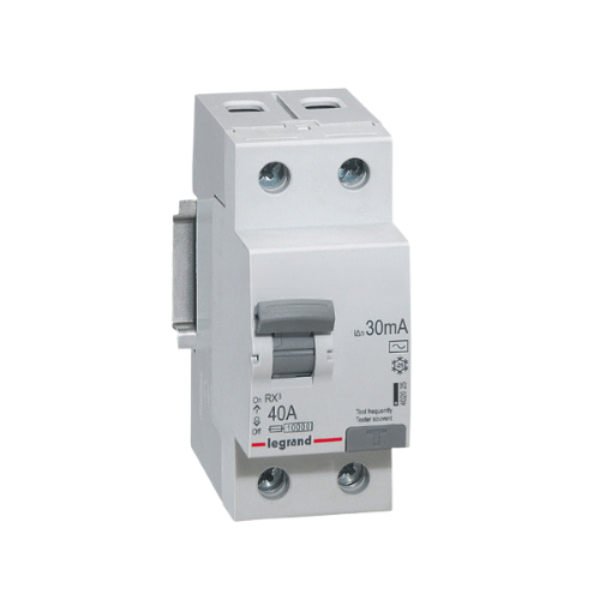

Legrand 402025 2P 40A 30mA RCCB

Legrand 402025 2P 40A 30mA RCCB (Residual Current Circuit Breaker)

The Legrand 402025 2P 40A 30mA RCCB is a Residual Current Circuit Breaker designed to detect earth leakage currents and disconnect the circuit immediately when a leakage current exceeds 30mA. This provides effective protection against electric shocks and electrical hazards, ensuring user safety and system reliability.

Key Features

• Rated current 40A: Suitable for circuits with medium to high load requirements.

• 30mA residual current sensitivity: Provides enhanced protection for users by instantly disconnecting the power supply when the leakage current exceeds 30mA.

• 2-pole design (2P): Protects both phase and neutral conductors, ensuring comprehensive safety for single-phase systems.

• Fast leakage detection: Responds immediately to earth leakage faults, preventing electric shock and fire risks.

• Easy installation: DIN rail mounting allows quick setup and seamless integration into existing electrical panels.

• Compact and durable design: Fits standard distribution boards and is ideal for residential and light commercial installations.

Technical Specifications

• Product code: 402025

• Rated voltage (Un): 230 V

• Rated current (In): 40 A

• Rated residual operating current (IΔn): 0.03 A (30mA)

• Rated insulation voltage (Ui): 250 V

• Rated impulse withstand voltage (Uimp): 4 kV

• Number of poles: 2

• Mounting method: DIN rail

• Type of residual current: AC

• Short-time withstand current (Icw): 10 kA

• Current increment: 0.25 kA

• Voltage type: AC

• Frequency: 50 Hz

• Degree of protection (IP): IP20

• Width (modules): 2

• Built-in depth: 44 mm

• Operating temperature: -25°C to +60°C

• Pollution degree: 2

• RAL color (approx.): 7035

• Dimensions (H × W × D): 88.9 × 35.6 × 77.8 mm

• Impact resistance (IK): IK04

• Storage temperature: -40°C to +70°C

• Color: Grey
