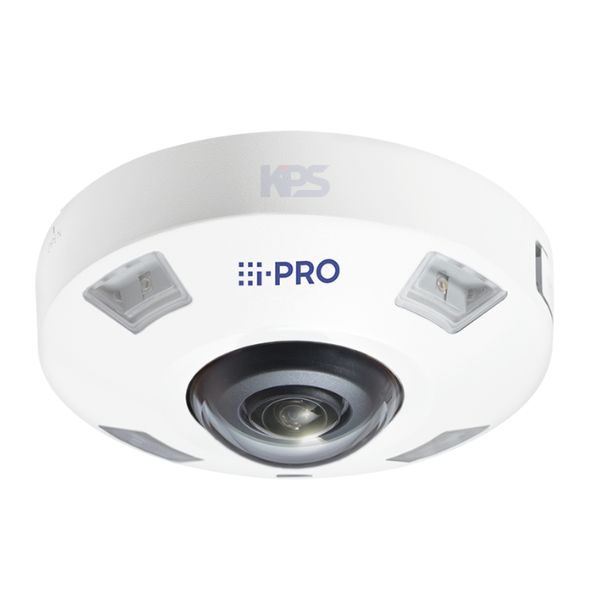

Camera WV-S4556LA 5MP Sensor Outdoor 360 Fisheye

WV-S4556LA Camera

The WV-S4556LA camera uses a 5MP CMOS sensor with a 1/3-inch size and strong light sensitivity, providing clear images even in low light conditions. The camera has a resolution of up to 2192x2192 and supports multiple video recording modes, including fisheye, panorama, and quad PTZ, enabling effective monitoring in all situations.

Smart features such as Motion Detection (VMD), AI sound detection, and AI image analytics enhance the surveillance capabilities, automatically recognizing unusual events. It also supports DORI recognition, allowing detection, observation, and identification of objects at distances up to 20 meters.

Designed to operate in harsh outdoor environments, the camera is water and dust resistant, meeting IP66 standards and shockproof with an IK10 rating. Additionally, it offers strong network connectivity, supporting various security protocols such as FIPS 140-2, HTTPS, and IEEE802.1X, ensuring safety and stability during operation.

Key Features:

• 5MP 360° Outdoor Fisheye Camera
• Up to 3 AI Edge Analytics applications
• Built-in IR LED (14m, 45ft)
• IP66 and IK10 certified
• FIPS 140-2 Level 3 Certified SecureElement Integration
• NDAA Compliant

Specifications

• Image Sensor: 5MP CMOS Sensor, 1/3-inch size.
• Minimum Illumination:
  • Color: 0.11 lx (30IRE, F2.4, 1/30s), 0.15 lx (50IRE, F2.4, 1/30s), 0.01 lx (50IRE, F2.4, 16/30s)
  • BW: 0 lx (IR LED: On), 0.02 lx (50IRE, F2.4, 1/30s), 0.0013 lx (50IRE, F2.4, 16/30s)
• Smart Mode: Intelligent Auto (On/Off).
• Max Shutter Speed: 1/10000s.
• Dynamic Range: 120 dB.
• Image Compensation: BLC, HLC, DNR, Fog, Adaptive black stretch.
• IR LED: Adjustable brightness (High, Medium, Low, Off), range up to 14m.
• Video Motion Detection (VMD): On/Off, 4 areas.
• AI Sound Detection: Gunshot, Yell, Vehicle horn, Glass break.
• Lens: 1x Zoom, 0.84mm focal length, f/2.4 aperture.
• DORI Recognition:
  • Detect: 20.7m, Observe: 8.3m, Recognize: 4.1m, Identify: 2.1m.
• System on Chip (SoC): Ambarella CV22.
• Network Interface: 10Base-T / 100Base-TX, RJ45.
• Resolution:
  • Fisheye mode: 2192×2192 / 1280×1280 / 640×640 / 320×320.
  • Quad PTZ mode: 1600×1200 / 1280×960 / 800×600 / VGA.
• H.265/H.264: Multi-stream transmission.
• Audio: Supports G.726 (ADPCM), G.711, AAC-LC with volume control.
• Safety Certifications: UL, c-UL, CE, IEC.
• Power Supply and Consumption: DC12V 1.03A, 12.4W; PoE DC48V 260mA, 12.5W.
• Water and Dust Resistance: IP66, protection against dust and water.
• Dimensions and Weight: Ø154mm x 60.3mm (with mounting base), weight approx. 870g.
