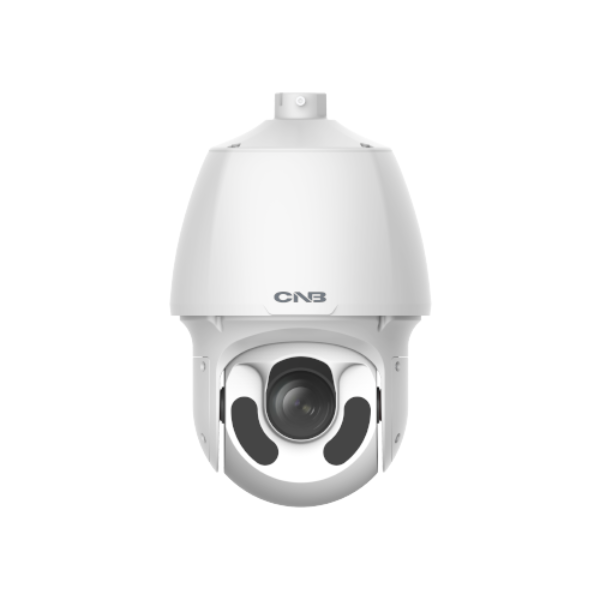

Camera CNB IR PTZ TPU44R-X33SW

Product Code: TPU44R-X33SW
Product Series: PTZ
Manufacturer: CNB
Warranty: ** months

YÊU CẦU BÁO GIÁ

Camera CNB IR PTZ TPU44R-X33SW

The CNB IR PTZ TPU44R-X33SW is a high-end PTZ surveillance camera from CNB Technology, designed for professional security systems (factories, parking lots, industrial parks, urban areas, etc.).

Key Features

H.265+, H.265, H.264, MJPEG
33X Optical Zoom
Triple streams
Up to 120dB Optical WDR
Smart IR, up to 150m IR distance
2D/3D DNR
Supports 512GB Micro SD card
ONVIF Conformance
Wide temperature range: -40°C ~70°C
AC 24V±25%, DC 24V±25% or PoE+(IEEE 802.3at) power supply
6KV surge protection designed for network interface
IP66

Specifications

Camera
Sensor	1/2.8", 4.0 megapixel, progressive scan, CMOS
Lens	4.5 ~ 148.5mm, AF automatic focusing and motorized zoom lens
DORI Distance	Lens	Detect（m）	Observe（m）	Recognize（m）	Identify（m）
	4.5	105.8	42.3 0	21.2	10.6
	148.5	3172.5	1269.0	634.5	317.3
Angle of View(H)	53.0° ~ 2.3°
Angle of View(V)	31.0° ~ 1.3°
Angle of View(O)	65.2° ~ 2.7°
Shutter	Auto/Manual, shutter time: 1~1/100000 s
Min. Illumination	Colour: 0.003 Lux (F1.5, AGC ON), 0 Lux with IR on
Iris	Auto/Manual; F1.5 ~ F4.0
Day/Night	IR-cut filter with auto switch (ICR)
IR Range	Up to 150m IR range
S/N	>56dB
WDR	120dB
Video $ Image
Video Compression	H.265+, H.265, H.264, MJPEG
Frame Rate	Main Stream:4MP(26881520),Max 30fps, Sub Stream:2MP(19201080),Max 30fps, Third Stream:D1(720*576),Max 30fps
ROI	Up to 8 areas
Digital noise reduction	2D/3D DNR
BLC	Supported
HLC	Supported
OSD	Up to 8 OSDs
Privacy Mask	24 areas, up to 4 areas per scene
Defog	Digital Defog
Audio
Audio Compression	G.711A, G.711U
Two-way audio	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, Up to 512 GB
Network Storage	ANR,NAS(NFS)
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Pan & Tilt
Pan Range	360° (endless)
Pan Speed	0.1°/s ~ 200°/s
	Preset speed: 300°/s
Tilt Range	–15° ~ +90° (auto reverse)
Tilt Speed	0.1°/s ~ 200°/s
	Preset speed: 240°/s
Number of Preset	1024
Patrol	Preset patrol, route patrol, recorded patrol
Home Position	Supported
Interface
Audio I/O	1 / 1
Alarm I/O	2 / 1
Serial Port	1 RS485
Network	1 RJ45 10M/100M Base-TX Ethernet
Video Output	1 BNC
General
Power	AC 24V±25%, DC 24V±25%, PoE+ (IEEE802.3 at)
	Power consumption: Max 25W
Dimensions (ØxH)	Ø227 x 384.8mm
Weight	5.28kg
Working Environment	-40°C ~70°C , Humidity: ≤95% RH (non-condensing)
Ingress Protection	IP66
Surge protection	6KV
