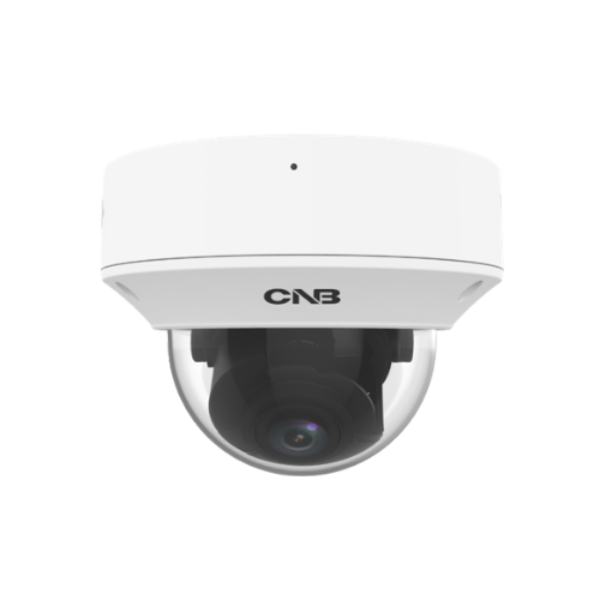

Camera CNB Dome TDV85R-SW

Product Code: TDV85R-SW
Product Line: Dome Camera
Manufacturer: CNB
Warranty: ** months

YÊU CẦU BÁO GIÁ

Camera CNB dome TDV55R-W

The TDV85R-SW is a high-end 4K (8MP) IP dome camera from CNB, belonging to the Dark Hunter MFZ series (motorized zoom). This is a series of cameras with electric zoom and super-sensitive brightness, specifically designed for high-quality surveillance.

Key Features

H.265+, H.265, H.264, MJPEG
High image quality in low illumination environment
Intelligent Function
Up to 120dB Optical WDR
Up to 40m IR distance
2D/3D DNR
Supports 512GB Micro SD card
Support 9:16 Corridor Mode
Built-in Mic
Alarm:1 in/1 out, Audio: 1 in/1 out
Wide temperature range: -30°C to 60°C
Wide voltage range of DC 12V±25%
Support PoE power supply
IP67 & IK10

TECHNICAL SPECIFICATIONS

TDV85R-SW
Camera
Sensor	1/2.8", 8 megapixel, progressive scan CMOS
Lens	2.8 ~ 12mm, AF automatic focusing and motorized zoom lens
DORI Distance	Lens (mm)	Detect (m)	Observe (m)	Recognize (m)	Identify (m)
	2.8	86.9	34.8	17.4	8.7
	12	372.4	149.0	74.5	37.2
Angle of View (H)	107.4°~ 29.2°
Angle of View (V)	54.2°~ 16.3°
Angle of View (O)	111.0°~33.1°
Shutter	Auto/Manual, 1 ~ 1/100000s
Min. Illumination	Colour: 0.0025 Lux (F1.6, AGC ON) / 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D / 3D DNR
S/N	>52 dB
IR Range	Up to 40m IR range
WDR	120dB
Video
Video Compression	H.265+, H.265, H.264, MJPEG
H.264 code profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8MP(38402160)/Max 20fps, 5MP(30721728)/Max 30fps, 4MP (25601440)/Max30fps, 1080P(19201080)/Max 30fps Sub Stream: 1080P(19201080)/Max 30fps, 720P(1280720)/Max 30fps, D1(720576)/Max 30fps, 640360/Max 30fps 2CIF(704288)/Max 30fps, CIF(352288)/Max 30fps Third Stream: D1(720576)/Max 30fps, 640360/Max 30fps, 2CIF(704288)/Max 30fps, CIF(352288)/Max 30fps
HLC	Supported
BLC	Supported
ROI	Up to 8 areas
OSD	Up to 8 OSDs
Privacy Mask	Up to 4 areas
Smart Intelligent
Smart Intrusion Prevention: Cross line detection, Intrusion detection, Enter area detection, Leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) People Counting: Support People Flow Counting and Crowd Density Monitoring
Basic Detection
Motion Detection, Ultra Motion Detection, Tampering Alarm, Audio Detection
Audio
Audio Compression	G.711U, G.711A
Two-way Audio	Supported
Suppression	Supported
Sampling Rate	8KHZ
Storage
Edge Storage	Micro SD, up to 512GB
Network Storage	ANR,NAS(NFS)
Interface
Network	10/100M Base-TX Ethernet
Built-in Mic	Supported
Audio I/O	1/1
Alarm I/O	1/1
Network
Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, 802.1x, SNMP, SSH
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
General
Power	DC 12V±25%, PoE (IEEE 802.3af)
	Power consumption: Max 9.0W
Dimensions (Ø x H)	Ø148 x 111.4mm
Weight	0.97kg
Working Environment	-30°C ~ 60°C, Humidity: ≤95% RH (non-condensing)
Surge Protection	6KV
Vandal Resistant	IK10
Ingress Protection	IP67
