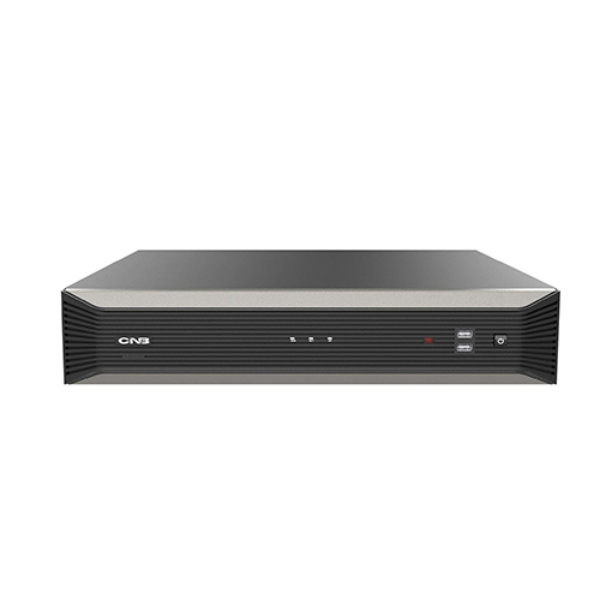

CNB KNU648-R 64-channel IP video recorder

Product Code: KNU648-R
Product Series: Non PoE NVR
Manufacturer: CNB
Warranty: ** months

YÊU CẦU BÁO GIÁ

CNB KNU648-R 64-channel IP video recorder

The CNB KNU648-R 64-channel IP video recorder is a high-end NVR used to connect, manage, and store data from up to 64 IP cameras, suitable for large-scale surveillance systems.

Key Features

Support H.265+/H.265/H.264 video formats
64channel input
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 2ch HDMI, 1ch VGA. HDMI1 and HDMI2 up to 4K (3840x2160) resolution
HDMI1, HDMI2, VGA independent outputs provided
Up to 16 Megapixels resolution recording
Support RAID 1, 5
8 SATA HDDs, Up to 16TB for each HDD
Various fisheye dewarping modes for live view and playback for both web interface and GUI
Support N+1 Hot spare
ANR technology to enhance the storage reliability when the network is disconnected

Specifications

KNU648-R
Video/Audio Input
IP Video input	64ch
Two-way audio input	1ch, RCA
Network
Incoming bandwidth	384Mbps
Outgoing bandwidth	160Mbps
Remote connection	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4
Video/Audio Output
HDMI/VGA output	VGA: 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz HDMI1/HDMI2(HDMI audio output is not supported): 4K (3840x2160)/30Hz, 1920x1080p/60Hz, 1920x1080p/50Hz, 1600x1200/60Hz, 1280x1024/60Hz, 1280x720/60Hz, 1024x768/60Hz
Audio Output	1ch, RCA
Recording Resolution	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Synchronous Playback	16ch
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Decoding
Compression	H265+, H.265, H.264
Live view/ Playback	16MP/12MP/8MP/6MP/5MP/4MP/3MP/1080p/960p/720p/D1/2CIF/CIF
Capability	2 x 16MP@30, 2 x 12MP@30, 4 x 4K@30, 6 x 5MP@30, 8 x 4MP@30, 16 x 2MP@30, 32 x 960P@25, 36 x 720P@30, 64 x D1
Hard Disk
SATA	8 SATA interfaces
Capacity	up to 16TB for each disk (The maximum HDD capacity varies with environment temperature)
Disk Array
Array Type	RAID 1, 5
External Interface
Network Interface	2 RJ-45 10M/100M/1000M self-adaptive Ethernet Interface
Serial Interface	1 x RS485
USB Interface	Front panel: 2 x USB2.0 Rear panel: 1 x USB3.0
Alarm In	16ch
Alarm Out	4ch
General
Power Supply	100 ~ 240 VAC Power Consumption: ≤ 25 W (without HDD)
Working Temperature	-10°C ~ + 55°C, Humidity ≤ 90% RH(non-condensing)
Dimensions (W×D×H)	442mm × 426mm× 89mm
Weight (without HDD)	≤ 5.5Kg
