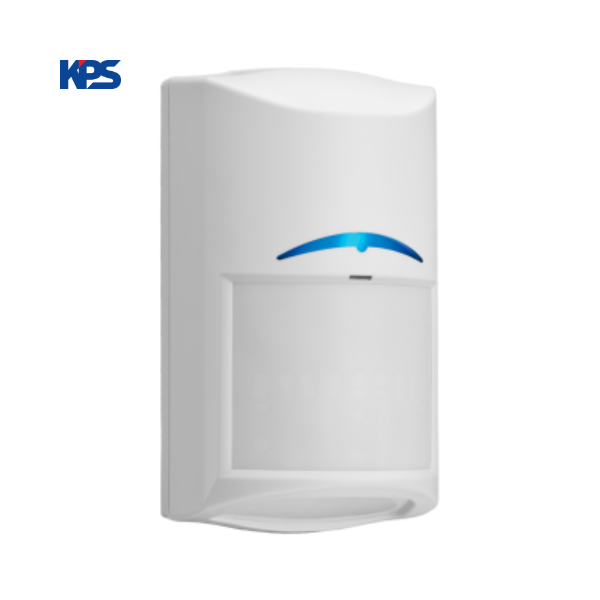

Bosch CDL2-15H Motion Sensor

Bosch CDL2-15H Motion Sensor

The Bosch CDL2-15H is a TriTech motion sensor that combines a passive infrared sensor (PIR) and a microwave Doppler radar, along with anti-masking. It is designed to provide accurate detection performance and minimize false alarms in commercial and industrial security applications.

Outstanding features:

• TriTech. Passive infrared and microwave Doppler radar detection with First Step Processing.

• C2DT: Cloak and Camouflage Detection Technology maximizes catch performance against intruders attempting to cover their infrared signal.

• Flexible Mounting Height and Integrated EOL resistors.

• Intelligent tamper and impact detection using a MEMS accelerometer.

• Active white light suppression.

Technical specifications

• Alarm relay contact type: NC (Normally Closed)

• Dimensions (H x W x D): 120 x 70 x 55 mm

• Operating temperature: -20 – 55°C

• Operating voltage: 9 – 15 VDC

• Tamper relay contact type: NC (Normally Closed)

• Trouble relay contact type: NC (Normally Closed)
