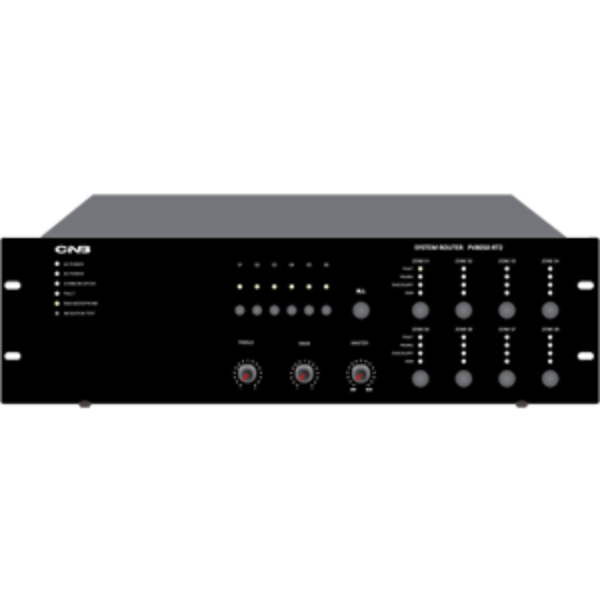

Voice Alarm Router PV8050-RT2 CNB
- Product Code: PV8050-RT2
- Product Series: PV8000
- Manufacturer: CNB
- Warranty: ** months
Voice Alarm Router PV8050-RT2 CNB
The PV8050-RT2 is an 8-zone emergency announcement router (Voice Alarm Router), playing a crucial role in public address and evacuation (PA & Voice Alarm) systems. Designed as an "all-in-one" router, it offers similar features to the PV8050-MC2 central controller, including zone-based announcement control, monitoring of the entire main signal line, amplifier switching, loudspeaker line monitoring, power management, and fire alarm system interface. All main signals are supplied from the central controller.
The device incorporates advanced DSP (Digital Signal Processor) technology, ensuring high-fidelity (hi-fi) audio quality and stable signal processing in both commercial announcements and emergency situations.
Each router is equipped with 8 zone-specific loudspeaker outputs, each with a rated power of 500W, allowing for precise audio distribution to each area. Additionally, the device can be pre-configured via the included software, including settings such as the number of microphones, number of zones, speaker load, speaker monitoring, fire alarm mode, Alert/EVAC announcement zones, AC/DC power supply, etc. After configuration, all settings will be synchronized with the central controller and routers in the system.
With its flexible scalability and integrated functions, the PV8050-RT2 is an effective solution for large-scale public address and evacuation sound systems.
Features
- Digital voice alarm system all in one router.
- Integration of voice alarm router, zone paging controller, all main signal line monitoring, amplifier changeover, speaker line supervision, power supply monitoring and power amplifier and fire alarm interface.
- Same features of master controller PV8050-MC2 while all main signals are feed from the master controller
- Auto broadcasting EVAC and alert 256 voice messages to pre-set zones.
- AB speaker line surveillance to avoid any speaker line failure.
- Back-up power amplifier management.
- Up to 120 zones by cascaded with master controller PV8050-MC2.
- Redundant network cabling backup through CAT6 cable loop connection.
- 8 supervised control inputs & 8 control outputs, 1 fault, 1 reset & 1 EVAC relay outs.
- Logs and fault events auto recording
Specifications
| Model | PV8050-RT2 |
| Description | System Router |
| Rated Power Output | 500W |
| Fireman Microphone | 5Mv, 600Ω |
| Frequency Response | 80Hz~20kHz |
| THD | ＜1% at RMS,1KHz |
| S/N Ratio | >70dB |
| Speaker Output | 100V AB 6 zone speaker outputs |
| REC Output | 200mV |
|
Control Input & Output |
8 control inputs: Max 3.3V (voltage mode) or 0V closed contact; 8 control outputs: 0V closed contact; 1 fault, 1 reset & 1 EVAC relay outs |
| Event Record | HEX format, Hard Flash memory, events up to 1000 records, 10 years valid |
| Operation Temp | Operation Temp: +5℃ ~ +40℃; Store Temp: -20℃ ~ +70℃; Humidity: <95% |
| Power Consumption | 650W |
