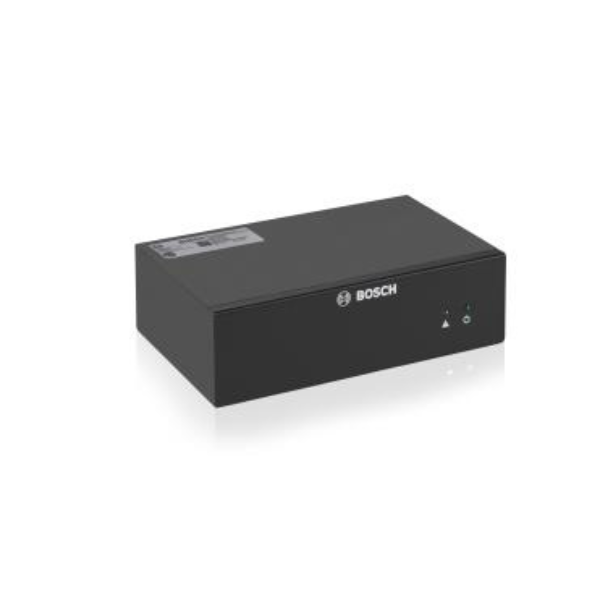

Interface module Prospero Bosch PRP-IM1A, 1 audio output

Interface module Prospero Bosch PRP-IM1A, 1 audio output

The PRP-IM1A interface module is an IP device designed to connect with the Bosch PROSPERO Public Address System through a standard IP network, enabling the transmission of audio signals to amplifiers or other audio devices.

This module has 1 audio output, meaning it can output audio signals from the system to connect to speakers or other audio playback devices. This output is commonly used to transmit audio in environments such as offices, schools, or public areas, supporting the broadcasting of announcements or background music.

Key Features:

• Transmits audio signals over IP network
• PoE power supply, direct connection with a single cable
• Compact form factor for cabinet tray mounting
• For PROSPERO Public Address systems

Specifications

• Rated input voltage (VDC): 48 V
• Standard: IEEE 802.3af Class 3
• Power consumption:
• Ethernet type: 100 BASE-TX
• Ethernet protocol: TCP/IP, UDP, RTP, TFTP, HTTP, HLS
• Audio encoding: MP3, PCM
• Interface: 1x RJ45
• Frequency response: 100 Hz — 18 kHz
• Sampling rate: 44.1 kHz
• Type: 1x Line level output
• Connector: 1x 3-pin Phoenix connector
• Maximum output level: 6 dBu
• Output impedance:
• Material: Metal housing
• Dimensions (H x W x D): 44 mm x 146 mm x 105 mm
• Weight: 465 g
• Color (RAL): RAL 9017 Traffic black
• Operating temperature (°C): -5°C — 45°C
• Storage and transportation temperature (°C): -40°C — 70°C
• Operating relative humidity, non-condensing (%): <95%

Datasheet/Technical Document
