EVID-2.1

EVID-2.1

FEATURE

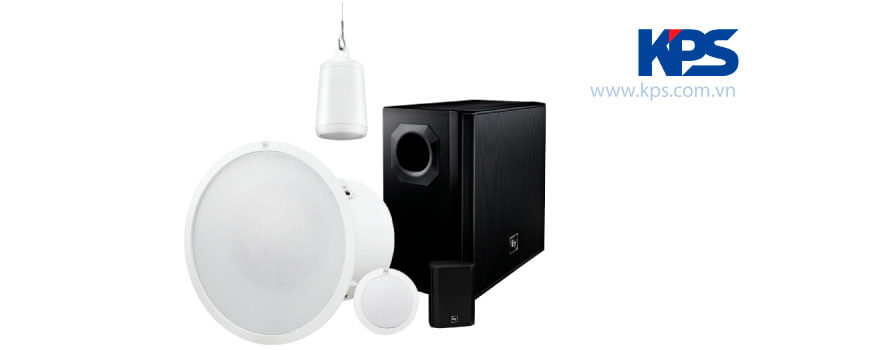

The EVID Compact Sound speaker line continues the EVID speaker line's focus on form and function, with a stylish, architecturally friendly design, best-in-class performance-to-size ratio, and installation and User-friendly operation. The system is designed to deliver outstanding background/foreground audio performance in retail spaces, restaurants and similar environments – all heard but virtually invisible.

In addition to EV-engineered components for superior quality and reliability, the system features quick-access connections, simple wiring, and flexible mounting options (hardware supplied) and Compatible with many existing EV amplifier products, making it a great choice for both contractors and end users. Available in black or white.

  • Quick installation design with permanent mounting tabs to fit almost any ceiling structure.
  • The four-pin Phoenix connector on the ceiling satellite speaker supports pass-through wiring.
  • UL 2043/1480 rating allows use in signal applications and ventilated spaces.
  • Ceiling cutout template and all installation accessories included.
  • Available in white.

TECHNICAL SPECIFICATIONS

Specification

Value

Frequency Range (-10 dB)

180 Hz – 20 kHzkHz

Weatherproof

Yes

Rated Power

30W

Connector Type

Phoenix (4-pin)

Speaker Enclosure Material

ABS (fire-resistant)

Sensitivity 1W/1m

84dB

Available Color

White

Height

7.91" (201mm)

Net Weight

25.75oz (730g)

Shipping Weight (per pair)

71.96oz (2040g)

Diameter (Max)

4.45" (113mm)

Sound Coverage (Nominal -6 dB)

150 x 150 (Voice), 100 x 100 (Music Program)

Impedance

16Ω

Max Sound Intensity

100dB

Regulatory Certification

UL1480

Passive Handling Power

30W (peak)
